Description

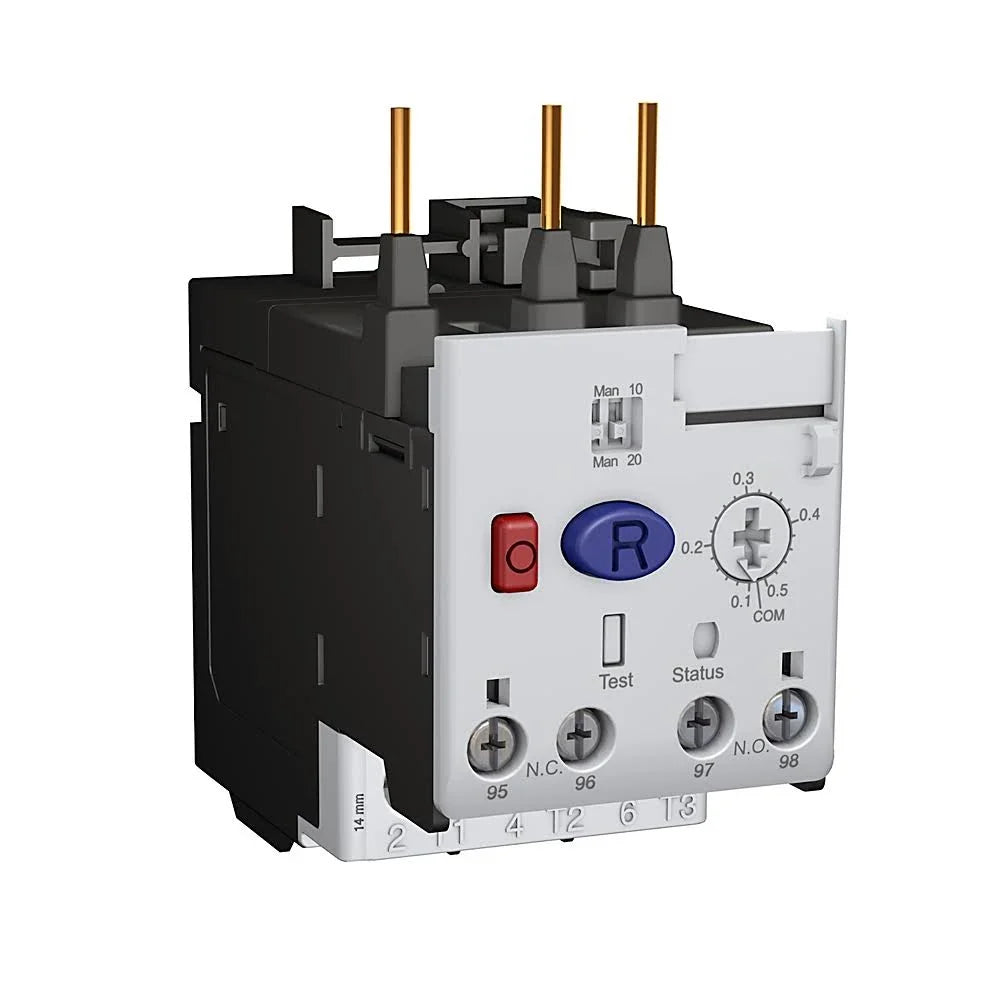

The Allen-Bradley 193-1EECB is an IEC-rated E100 series electronic overload relay designed for motor protection in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Contactors & Starters |
| Part Number |
193-1EECB
|
| Subcategory |
Solid State Overload/Relay |
|
|
1-5 Amp |
| Mounting Type |
C09...C23 Bulletin 100 IEC Contactor Size |
| Applications |
Basic Motor Control and Protection |
| Type |
Basic, Manual Reset |
| Poles |
3 |
| Class |
Class 10 - 20 |
| Used With |
E100-C09, C23 IEC Contactors |
| Weight |
0.29 lbs |
Information About 193-1EECB
The Allen-Bradley 193-1EECB is a compact electronic overload relay from the E100 series, designed for direct mounting on IEC contactors to protect motors and equipment in industrial applications.
Key Features:
-
Model: 193‑1EECB (E100 Basic electronic overload relay)
-
Current Range: Adjustable from 1.0 to 5.0 A
-
Trip Classes: Class 10 and 20 selectable via rotary dial
-
Reset Type: Manual reset only
-
Phase Loss Detection: Yes (single-phase protection)
-
Contacts: 1 normally closed (trip) + 1 normally open (alarm) auxiliary contacts
-
Mounting Compatibility: Direct mounts to IEC contactor sizes 100‑C09 to C23
-
Relay Type: Solid-state electronic thermal modeling, self-powered
-
Dimensions: Fits standard IEC direct-mount footprint
-
Electrical Ratings: Suitable for motors up to ~2.2 kW @ 415 V (IEC)
-
Current Accuracy: 5:1 adjustment range for versatile coverage
-
Thermal Memory: Yes – retains thermal state for consistent protection
-
Operating Voltage: Up to 690 V
The 193-1EECB provides reliable motor protection with precise electronic overload detection, phase-fault sensing, and manual reset capability. Its compact design, wide adjustment range, and thermal memory make it ideal for space-saving IEC motor control solutions.
