Description

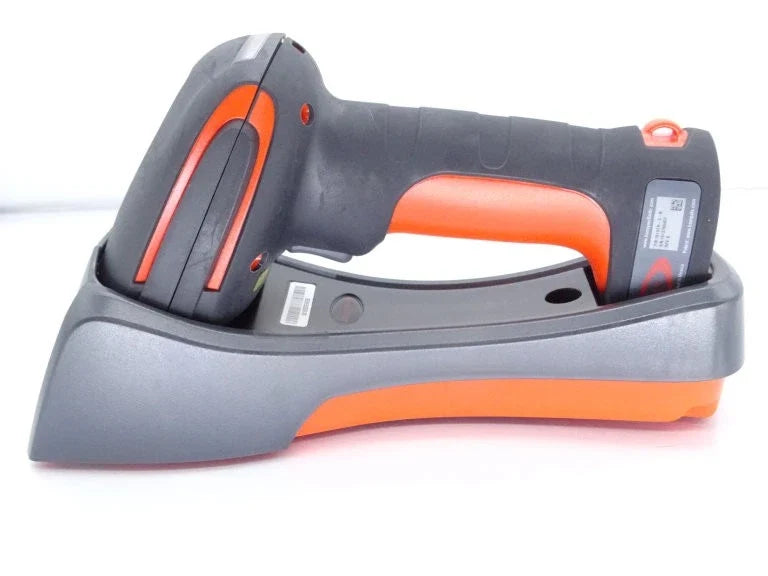

The Honeywell 1911IER-3USB-5-N Granit 1911i is a cordless industrial-grade area-imaging scanner kit designed for harsh environments. It reads 1D, PDF417, and 2D barcodes with exceptional performance, even when damaged or poorly printed. Featuring an extended range focus and IP65-rated housing, it provides unmatched durability and reliability in demanding industrial workflows.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Bar Code Equipment |
| Part Number |
1911IER-3USB-5-N |
| Subcategory |
Bar Code Scanner Hand Held |
| Scanner Type |
Wireless Industrial Area-Imaging |
| Symbologies Supported |
1D, PDF417, 2D |
| Focus Type |
Extended Range (ER) |
| Wireless Range |
Up to 100 m (300 ft) line of sight via Bluetooth v2.1 Class 1 |
| Battery |
2400 mAh Li-Ion, up to 50,000 scans, 14 hrs operation |
| Charging Time |
Approx. 4.5 hours |
| Drop Rating |
50 drops from 2 m (6.5 ft) at -20 °C |
| Tumble Rating |
5,000 tumbles at 1 m (3.3 ft) |
| Environmental Sealing |
IP65 scanner, IP51 base |
| Operating Temp |
-4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temp |
-40 °F to 158 °F (-40 °C to 70 °C) |
| Humidity |
Up to 95% non-condensing |
| Motion Tolerance |
Up to 610 cm/s at 16.5 cm; 381 cm/s at 25 cm |
| Dimensions (Scanner) |
5.2 in × 2.9 in × 7.6 in (133 mm × 75 mm × 195 mm) |
| Dimensions (Base) |
9.9 in × 4.1 in × 2.6 in (250 mm × 103 mm × 65 mm) |
| Weight (Total) |
2.20 lbs |
Information About 1911IER-3USB-5-N
The 1911IER-3USB-5-N is part of the Honeywell Granit 1911i series, optimized for heavy-duty industrial scanning tasks. Built with Adaptus™ 6.0 imaging technology, it offers advanced decoding for virtually all barcode types, including low-density and damaged codes. Its Bluetooth Class 1, v2.1 wireless connectivity enables up to 100 m (300 ft) line-of-sight range from the base, with support for up to seven scanners per base. Designed to survive 5,000 tumbles at 1 m and 50 drops from 2 m at -20 °C, it ensures minimal downtime and reduced total cost of ownership.
Key Features:
- Rugged Industrial Design: IP65-rated housing withstands 5,000 tumbles and 50 drops from 2 m at -20 °C.
- Extended Range Scanning: Reads 20 mil linear codes up to 29.5 in (75 cm) and supports a wide range of symbologies.
- Wireless Connectivity: Bluetooth Class 1, v2.1 with up to 100 m range from the base, supporting multiple scanners per base.
- Adaptus™ 6.0 Technology: High-speed decoding of poor-quality, damaged, and low-density barcodes.
- Shift-PLUS Power System: 2400 mAh Li-Ion battery supports up to 50,000 scans per charge with 14 hours of operation.
- TotalFreedom™ 2.0 Platform: Allows loading and linking of multiple applications for custom decoding and processing.
- Ergonomic & Reliable: Optimized for high-performance, all-day use in tough industrial environments.
The 1911IER-3USB-5-N delivers the reliability and performance required for mission-critical barcode scanning in the harshest conditions.
