Description

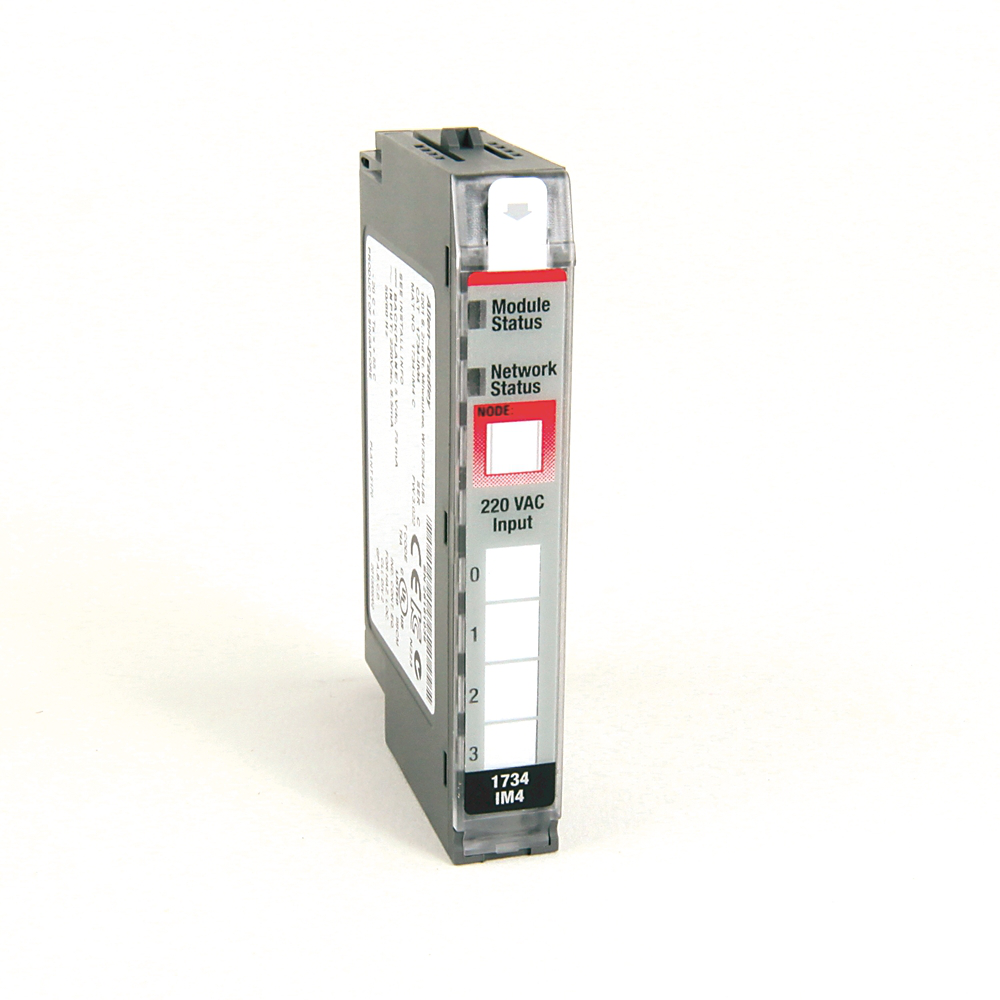

The Allen-Bradley 1734-IM4 is a POINT I/O input module that provides four input channels for AC voltage signals.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1734-IM4 |
| Subcatecory |
|
| Series |
POINT I/O |
| Module Type |
Digital AC Input Module |
| Inputs |
2 or 1 group of 4 |
|
Input Voltage
|
220 Volts AC |
| POINTBus Current |
75 milliamps |
| Power Dissipation |
0.1 Watts Maximum |
| Thermal Dissipation |
3.4 BTU Maximum |
| Weight |
0.11 lbs |
Information About 1734-IM4
The 1734-IM4 is an input module from Allen-Bradley’s POINT I/O series, designed to provide reliable AC input signal monitoring in distributed industrial control systems. Its compact size and flexibility make it ideal for use in space-constrained automation applications.
Key Features:
- Type: AC Input Module
- Supported Applications: Industrial automation, distributed control systems, and machine control
- Functionality: Converts AC input signals for use by the control system
- Number of Inputs: 4 input channels
- Input Voltage Range: 79 to 132V AC
- Input Type: Sinking/sourcing (depending on system configuration)
- Mounting: DIN rail mountable
- Backplane Current (at 5V): Approximately 75 mA
- Status Indicators: Individual LED indicators for each channel
- Environmental Rating: Suitable for industrial environments
- Compliance: UL, CSA, CE, and other applicable industrial standards
- Hot-Swappable: Yes (can be replaced without shutting down the system when used in a compliant POINT I/O system)
The 1734-IM4 offers a compact and efficient solution for integrating multiple AC input signals into Allen-Bradley POINT I/O control systems, supporting flexible and scalable automation setups.
