Description

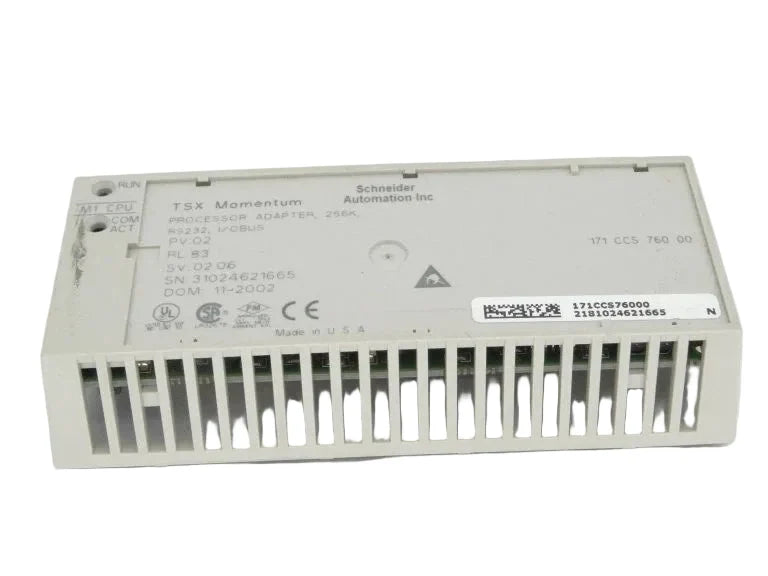

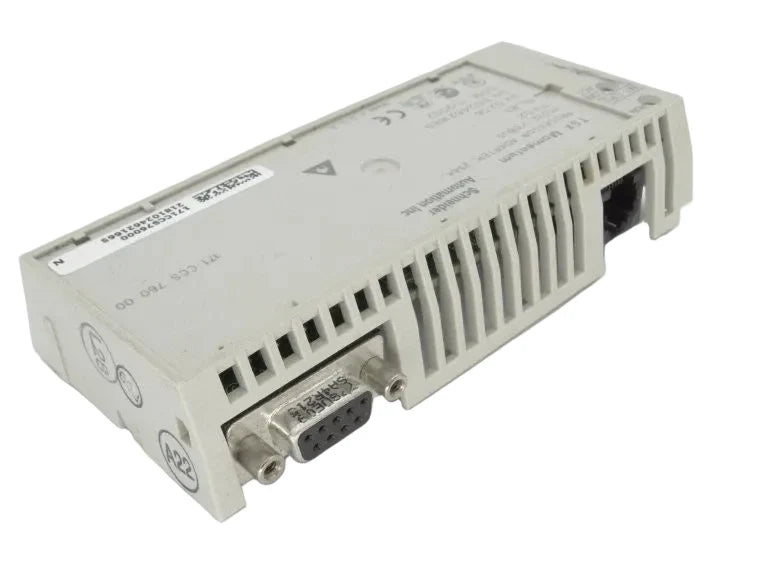

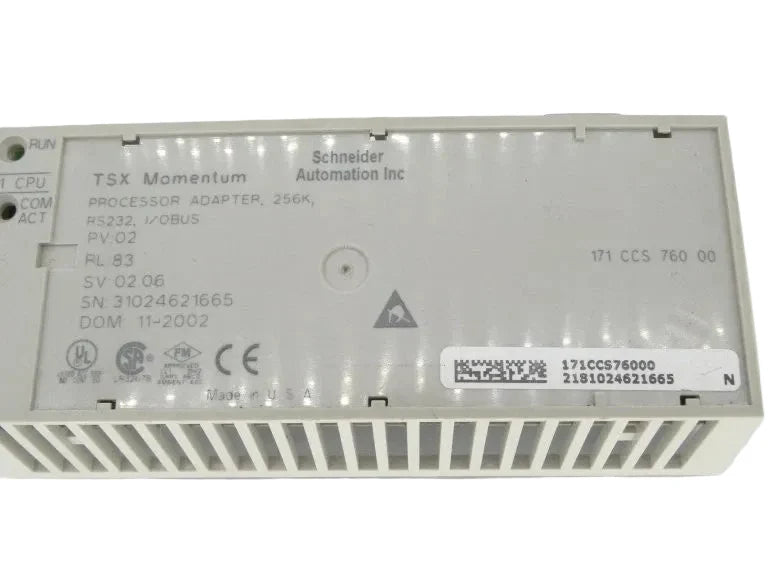

The Schneider Electric 171-CCS-760-00 is a process adapter designed for the Modicon Momentum automation platform. It provides processing capability based on an x86 Intel/AMD architecture and supports Modbus communication for industrial control systems. This adapter integrates control processing, memory, and I/O bus management within a single module.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Control |
| Part Number |
171-CCS-760-00 |
| Subcategory |
Process Adapters |
| Product Type |
Process Adapter |
| Automation Platform |
Modicon Momentum |
| Compatible Systems |
M1, M1E |
| Processor Architecture |
x86 Intel / AMD |
| I/O Bus |
1 I/O bus |
| I/O Bus Speed |
20 MHz |
| Communication Protocol |
Modbus |
| Communication Port |
1 × Modbus |
| Flash Memory |
256 KB |
| RAM |
256 KB |
| Application |
Embedded control processing |
| Weight |
0.75 lbs |
Information About 171-CCS-760-00
The 171-CCS-760-00 is a process adapter manufactured by Schneider Electric for use with M1 and M1E systems in the Modicon Momentum platform. It incorporates an x86-based Intel/AMD processor operating with a 20 MHz I/O bus to manage automation tasks. The adapter supports Modbus communication through a dedicated port for integration with industrial networks. With onboard flash and RAM memory, it is designed to execute control logic and manage data exchange within distributed automation architectures.
Key Features:
- Process Adapter Module: Combines processing, memory, and communication functions in one unit.
- Modicon Momentum Compatibility: Designed for M1 and M1E Momentum automation systems.
- x86-Based Processor Architecture: Utilizes Intel/AMD technology for control processing.
- Modbus Communication Support: Enables connectivity with Modbus-compatible devices and networks.
- 20 MHz I/O Bus: Supports reliable and responsive I/O communication.
- Integrated Memory Resources: Includes 256 KB Flash and 256 KB RAM for control operations.
The 171-CCS-760-00 delivers the reliability and precision required for embedded control processing in Modicon Momentum automation systems.
