Description

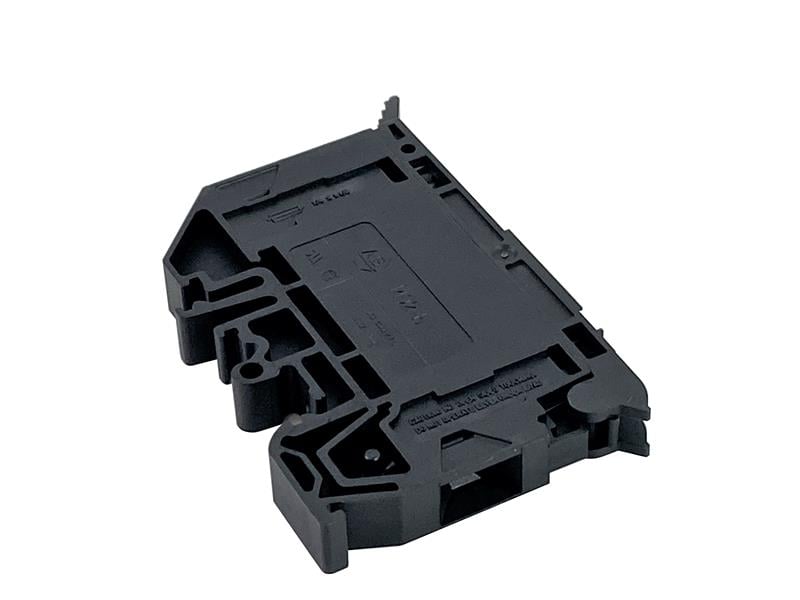

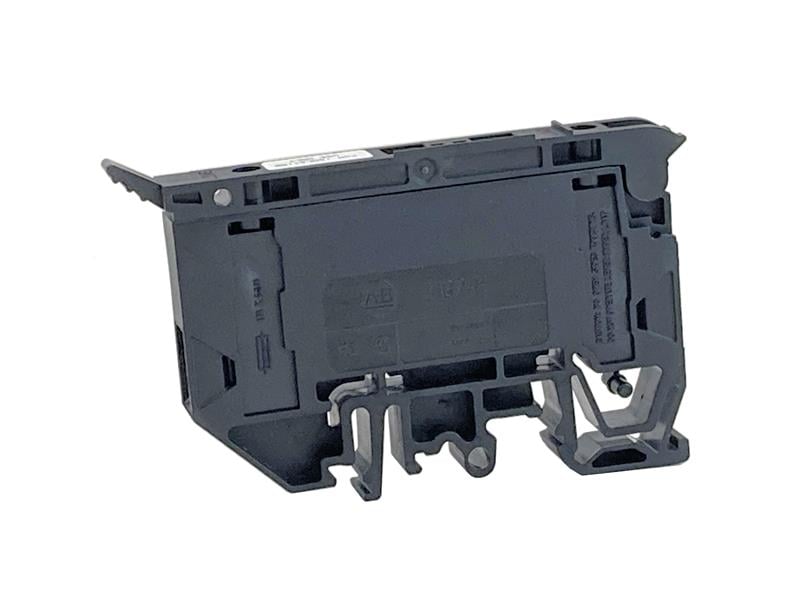

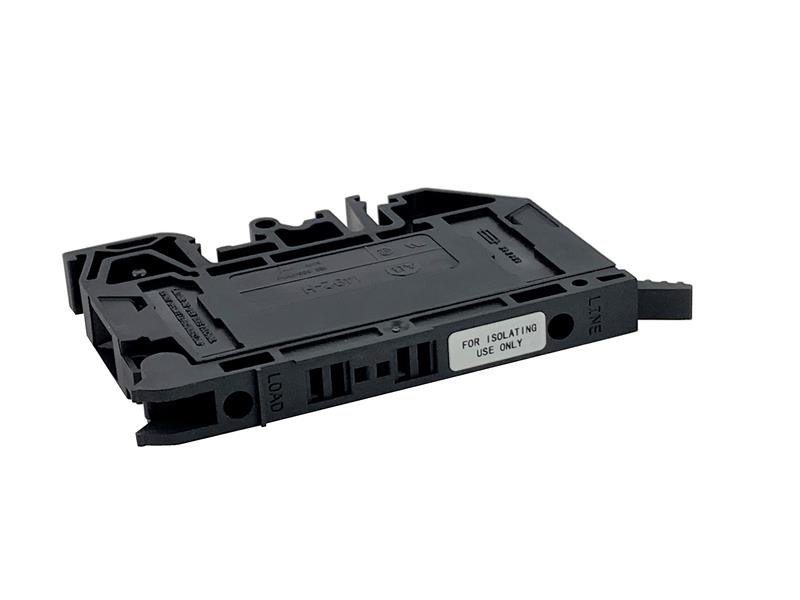

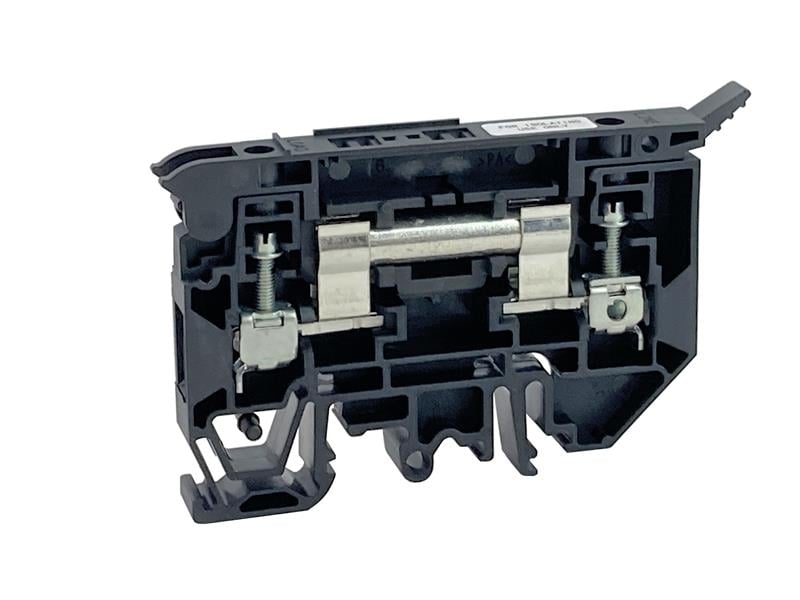

The Allen-Bradley 1492-H7 is a single-pole, handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
1492-H7 |
| Subcategory |
|
| Connection Type |
Screw Connection |
| Isolation Style |
Handle Style Isolating |
| Dimensions (W x H x D) |
9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in) |
| Number of Poles |
1 Pole |
| Color |
Black |
| Voltage Rating (UR) |
300 V AC/DC |
| Voltage Rating (CSA) |
300 V AC/DC |
| Voltage Rating (IEC) |
500 V AC/DC |
| Maximum Current |
15 A |
| Weight |
0.02 kgs |
| Wire Range |
#30 - #10 AWG |
Information About 1492-H7
The Allen-Bradley 1492-H7 is a handle-style isolating terminal block designed for safe and efficient circuit disconnection in industrial control systems. It features a finger-safe housing to minimize the risk of electric shock and is suitable for applications requiring reliable isolation of electrical circuits.
Key Features:
-
Type: Single-circuit isolation switch block
-
Termination: Screw clamp
-
Wire Range: #30 to #12 AWG (0.05 to 4 mm²)
-
Rated Voltage:
-
UL/CSA: 300 V AC/DC
-
IEC: 500 V AC/DC
-
Maximum Current: 15 A
-
Housing Color: Black
-
Mounting: DIN rail
-
Dimensions (W x H x D): 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in)
-
Housing Temperature Range: –40 to +105 °C (–40 to +221 °F)
-
Certifications: UL Recognized, CSA Certified, CE Marked
This terminal block is ideal for applications requiring compact, high-density wiring solutions with enhanced safety features. Its handle-style design allows for easy manual disconnection of circuits without the need for additional tools.
