Description

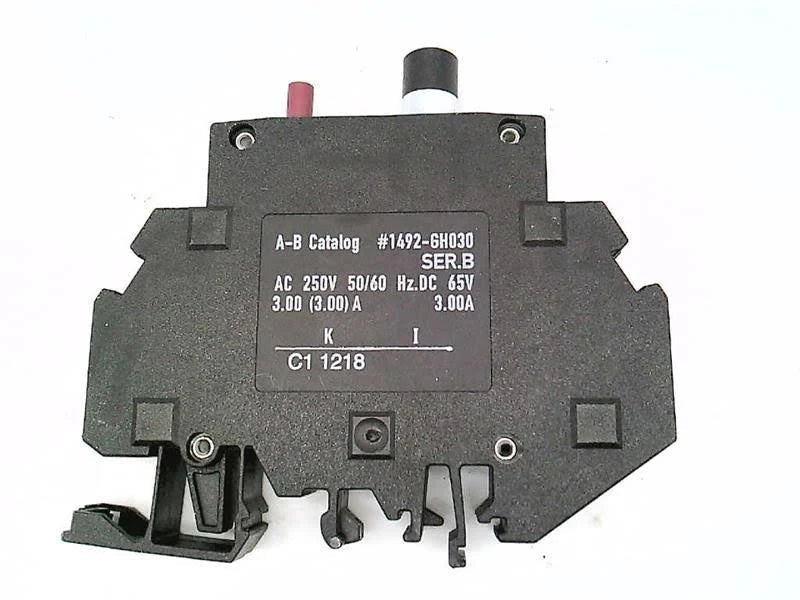

The Allen-Bradley 1492-GH030 is a high-density miniature circuit breaker designed for reliable supplementary protection in control circuits and equipment. With thermal-magnetic trip technology and a compact form factor, it ensures safety without compromising panel space.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1492-GH030
|
| Subcategory |
Din Rail Mount Circuit Breaker |
| Series |
1492-GH |
| Current Rating |
3 Amp |
| Voltage Rating (AC) |
250 VAC |
| Voltage Rating (DC) |
65 VDC |
| Trip Type |
Thermal-Magnetic |
| Poles |
1 Pole |
| Frequency |
50/60 Hz |
| Interrupt Rating |
200 AIC |
| Mounting Type |
DIN Rail |
| Operating Temperature |
Up to 70°F (21°C) |
| Standards |
CE, CSA, CUL, UL |
| Weight |
0.1100 lb |
Information About 1492-GH030
The 1492-GH030 is part of the Allen-Bradley 1492-GH series, engineered for high-density configurations where space-saving is crucial. This single-pole miniature circuit breaker supports both AC and DC systems, operating at up to 250 VAC and 65 VDC. Designed with a thermal-magnetic trip mechanism, it provides dual protection: the thermal element reacts to sustained overloads, while the magnetic component instantly interrupts short-circuits. The breaker mounts easily on standard DIN rails, offering straightforward integration into modular control panels.
Key Features:
- 3 Amp Current Rating: Tailored for protection of low-power control circuits and supplemental protection in wider systems.
- Voltage Compatibility: Rated for use at 250 VAC and 65 VDC, ensuring flexibility across a broad range of applications.
- Thermal-Magnetic Tripping Technology: Provides precise overload and short-circuit protection through dual trip mechanisms.
- Compact High-Density Design: Saves space in crowded enclosures while maintaining accessibility and ease of wiring.
- DIN Rail Mountable: Simplifies installation and replacement, especially in modular and scalable systems.
- International Safety Certifications: CE, CSA, CUL, and UL listed for trusted global performance.
- Operating Temperature: Designed to function reliably in environments up to 70°F (21°C), suitable for standard industrial conditions.
- Interrupt Rating: Supports up to 200 Amps of interrupting capacity, enhancing system safety during fault conditions.
The 1492-GH030 is engineered to combine compactness with high reliability, making it an essential component in any modern electrical control system requiring supplementary circuit protection.
