Description

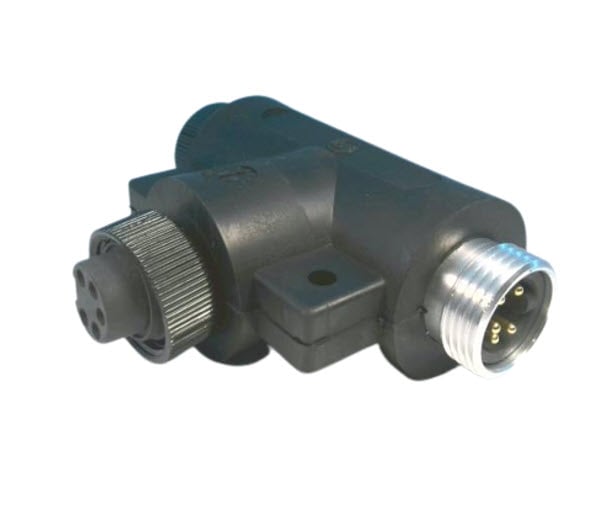

The Allen-Bradley 1485P-P1N5-MN5R1 is a DeviceNet T-Port connector from the 1485P series, designed to facilitate drop connections from a DeviceNet trunk line to individual devices.
Technical Specifications
| Condition |
New/Never Used Surplus |
|
| Brand |
Allen-Bradley
|
|
| Category |
|
|
| Part Number |
1485P-P1N5-MN5R1
|
|
| Subcatecory |
|
|
| Media System |
DeviceNet Round Media |
|
Connector Device Type
|
T-Port |
|
| Connector Version |
Standard |
|
| Connector Style |
Mini Male/Mini Female Trunk Connection |
|
| Connector Type |
Female Mini |
|
| Port Number |
1 Port |
|
| Drop Connector Description |
Right Keyway Orientation |
|
| Weight |
0.25 lbs |
|
Information About 1485P-P1N5-MN5R1
The Allen-Bradley 1485P-P1N5-MN5R1 is a DeviceNet T-Port connector designed to facilitate drop connections from a DeviceNet trunk line to individual devices. It features a mini-style male/female trunk connection and a single female drop port with a right keyway orientation, ensuring secure and reliable network connections in industrial environments.
Key Features:
-
Connector Type: T-Port with mini male/female trunk and one female drop port
-
Orientation: Right keyway
-
Port Configuration: 1 drop port
-
Connector Style: Mini-style
-
Device Type: Passive
-
Voltage Rating: 50 V
-
Current Rating: 8 A
-
Material: Thermoplastic housing with gold-plated brass contacts
-
Temperature Range: -25°C to 70°C (-13°F to 158°F)
-
Enclosure Rating: IP67
This connector is suitable for use in industrial automation systems requiring robust and reliable DeviceNet connections.
