Description

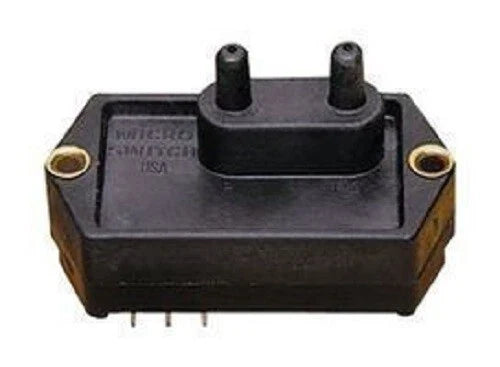

The Honeywell 142PC02D is a board mount pressure sensor designed for low-pressure gauge and differential measurement applications from 0 to 2 psi. It provides an analog voltage output ranging from 1 V to 6 V and is intended for through-hole PCB installation. The sensor is suitable for precision monitoring in medical, HVAC, and industrial instrumentation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
142PC02D |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
140PC |
| Pressure Type |
Gauge, Differential |
| Operating Pressure Range |
0 to 2 psi |
| Accuracy |
±0.25% |
| Output Type |
Analog |
| Output Voltage |
1 V to 6 V |
| Supply Voltage (Max) |
16 V |
| Operating Supply Current |
8 mA |
| Mounting Style |
Through Hole |
| Termination Style |
PC Pin |
| Port Type |
Dual Axial Barbless |
| Port Size |
5 mm |
| Operating Temperature |
-40°C to +85°C |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About 142PC02D
The 142PC02D belongs to the Honeywell 140PC series of board mount pressure sensors. It is configured for gauge and differential pressure measurement with a full-scale operating range of 0 to 2 psi. The device features dual axial barbless ports with a 5 mm connection size and uses PC pin termination for secure through-hole mounting. Designed for stable analog performance, it operates from a supply voltage up to 16 V and functions across a temperature range of -40°C to +85°C.
Key Features:
-
0 to 2 psi Pressure Range: Designed for low-pressure gauge and differential measurement.
-
Analog Voltage Output: Provides 1 V to 6 V signal for monitoring and control circuits.
-
±0.25% Accuracy: Supports precise pressure sensing applications.
-
Through-Hole Mounting: PC pin termination for direct PCB installation.
-
Dual Axial Barbless Ports: 5 mm port size for tubing connections.
-
Wide Temperature Range: Operates from -40°C to +85°C.
-
Low Supply Current: Typical operating supply current of 8 mA.
-
140PC Series Design: Suitable for board-level integration in instrumentation systems.
The 142PC02D delivers the reliability and precision required for low-pressure monitoring in board-mounted electronic systems.
