Description

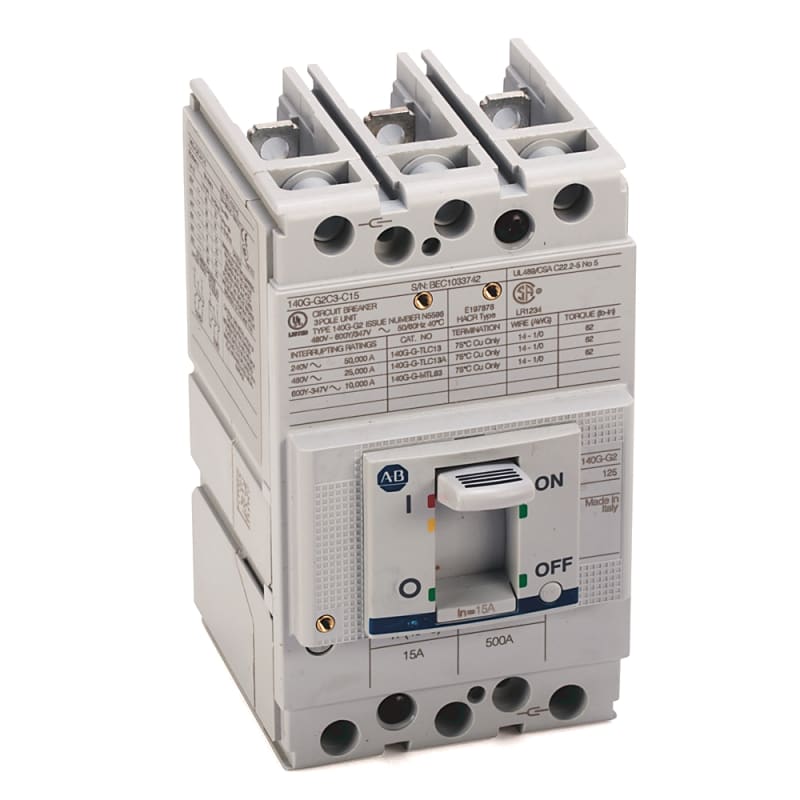

The Allen-Bradley 140G-G2C3-C50 is a molded case circuit breaker designed for robust circuit protection in industrial power systems. With fixed thermal and magnetic trip mechanisms, it provides reliable overload and short-circuit protection.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
140G-G2C3-C50
|
| Subcatecory |
Molded Case Circuit Breakers
|
| Frame |
G |
| Amps |
125 |
| Interrupting Rating |
25 kA |
| Protection Type |
Fixed Thermal/ Fixed Magnetic |
| Current Range |
50 A |
| Rated Insulation Voltage |
800 V |
| Rated Impulse Withstand Voltage |
8 kV |
| Weight |
2.42 lb |
| Thermal Trip |
50 A |
| Magnetic Trip |
500 A |
Information About 140G-G2C3-C50
The 140G-G2C3-C50 is part of the Allen-Bradley 140G Series of molded case circuit breakers. Built on the G-frame platform, it supports fixed thermal and magnetic trip settings for consistent and predictable protection. The breaker has a 125 A frame rating, but is configured with a thermal trip set at 50 A and magnetic trip at 500 A, making it well-suited for branch or feeder circuit protection.
Key Features:
-
125 A Frame Rating: Supports a range of configurations, with this model set for 50 A thermal trip.
-
Fixed Thermal and Magnetic Trip: Simple, reliable protection with no adjustment required.
-
High Interrupting Capacity: 25 kA at 600V AC for secure fault interruption in industrial circuits.
-
Magnetic Trip at 500 A: Designed to react quickly to short-circuit conditions and protect downstream equipment.
-
Rated Insulation Voltage of 800V: Provides safety margin for use in higher-voltage environments.
-
Impulse Withstand Voltage: 8 kV for improved resistance to transient overvoltages.
-
3-Pole Configuration: Compatible with three-phase distribution systems.
The 140G-G2C3-C50 offers robust protection for industrial and commercial installations requiring dependable fixed-trip circuit breakers.
