Acts as a generic USB network interface card with PLCA and CSMA/CD support.
The 10BASE-T1S USB Interface realizes a connection between a 10BASE-T1S network and a USB port.

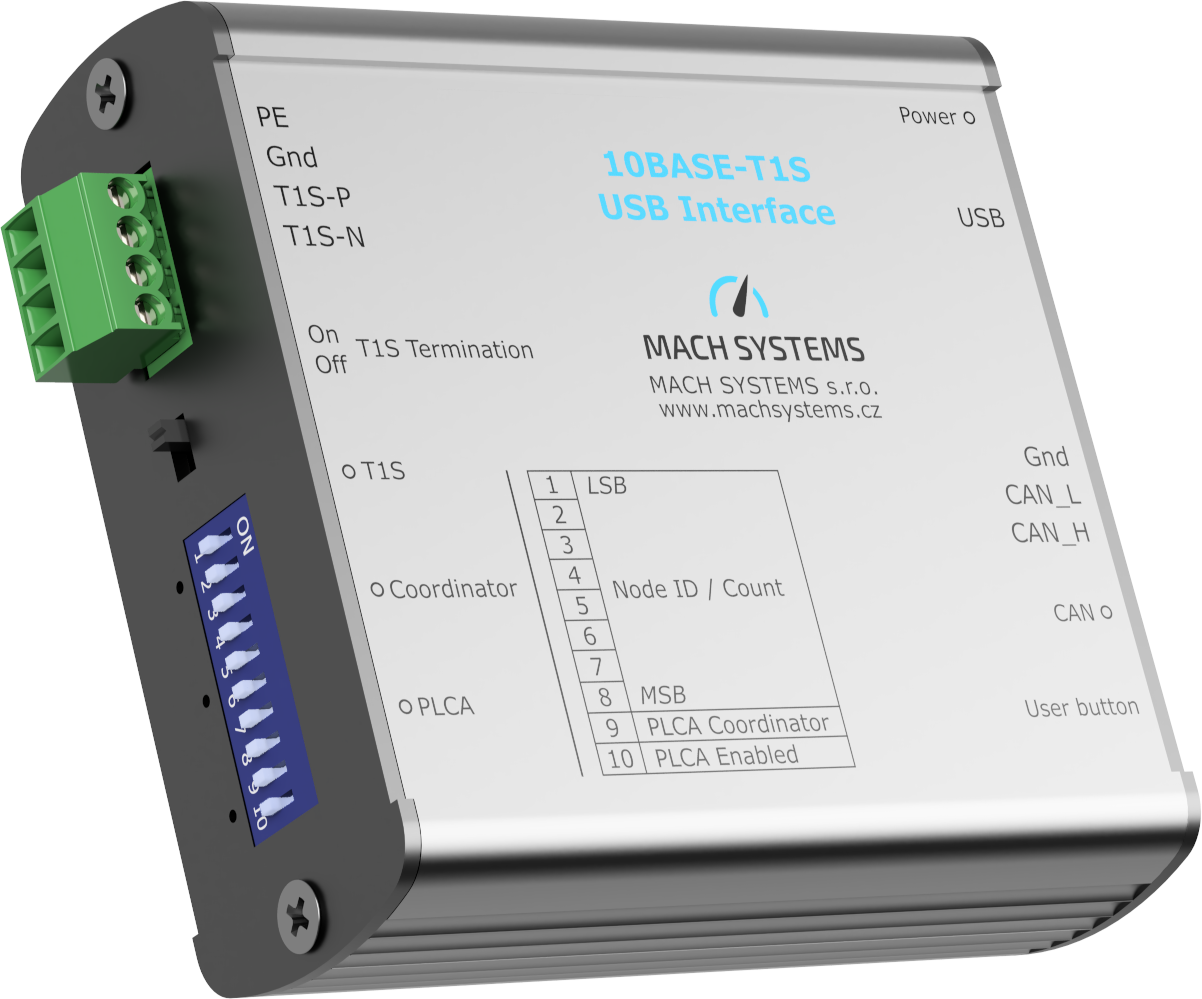

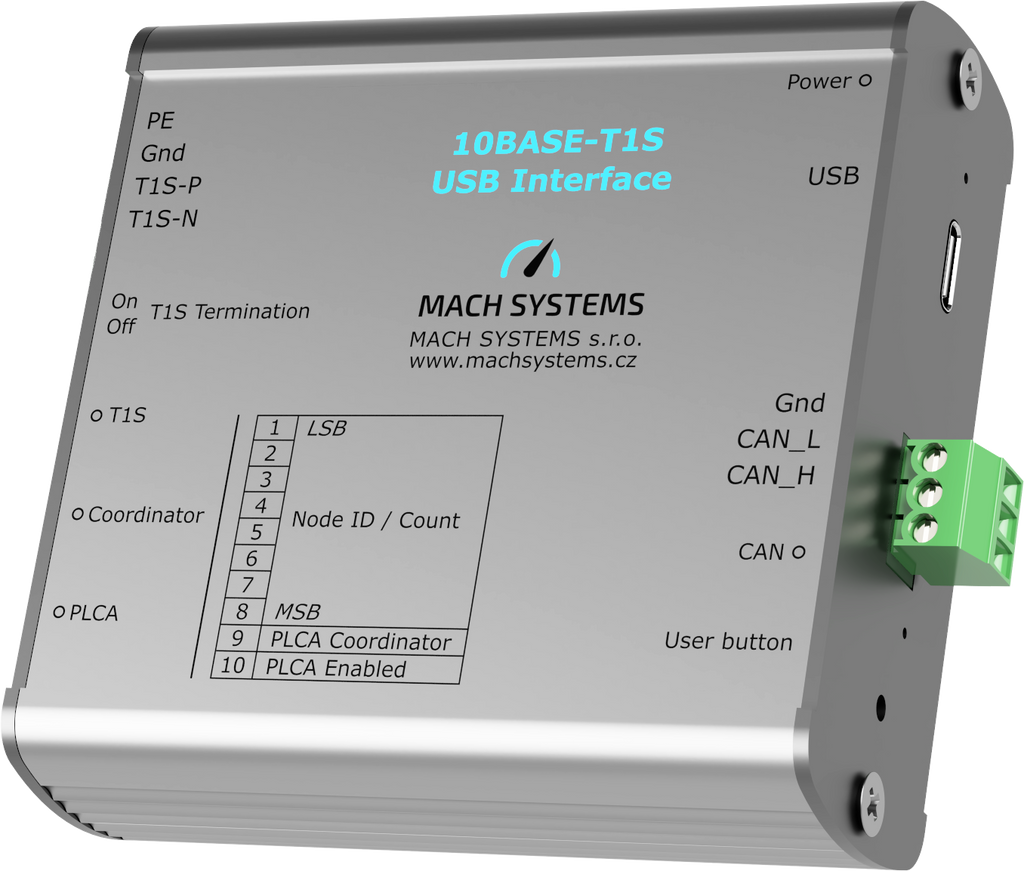

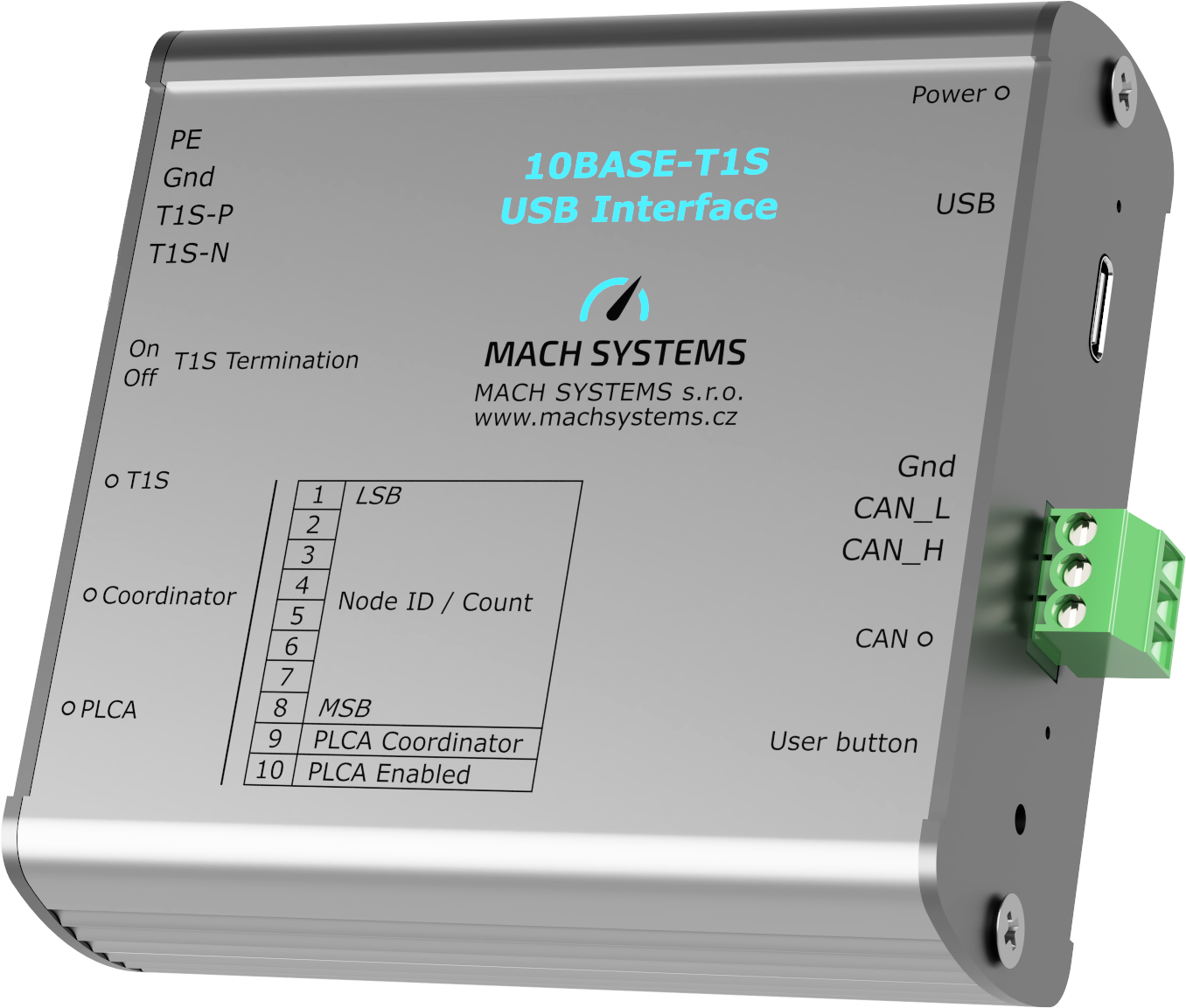

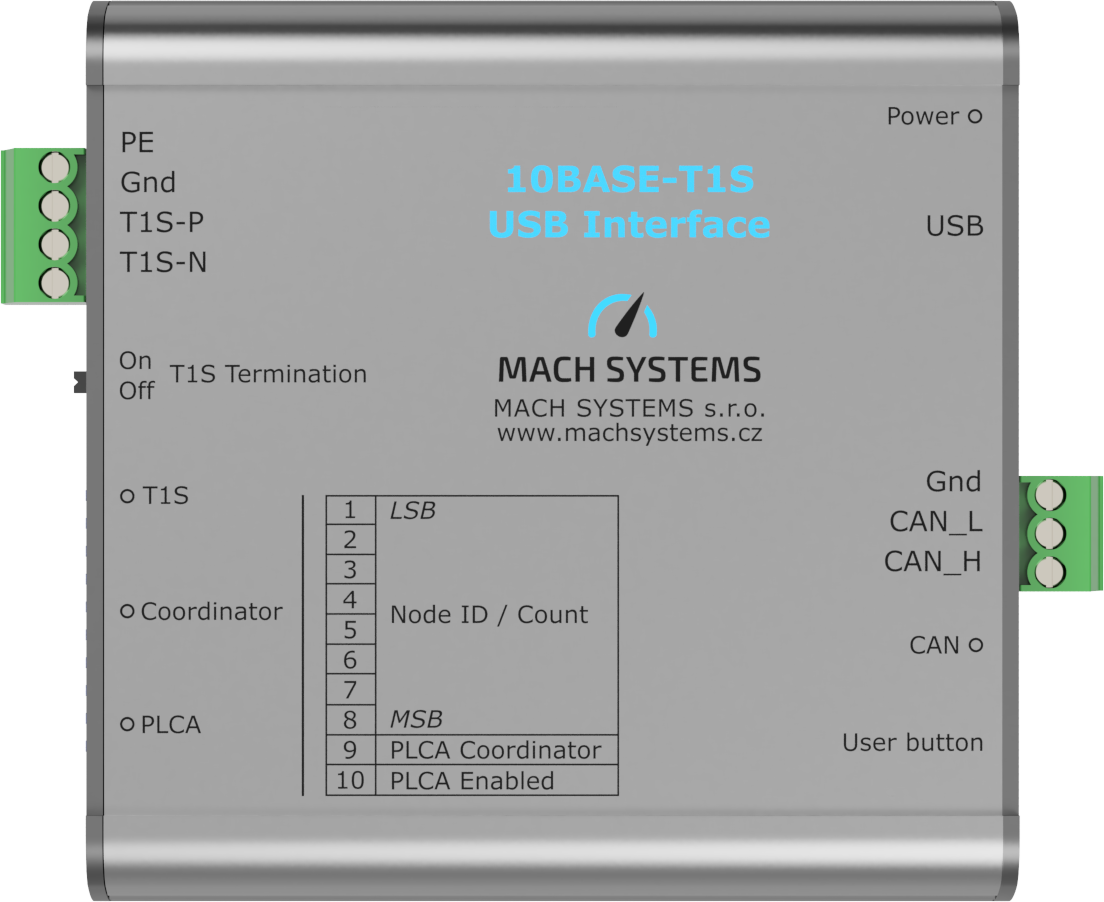

The Single-Pair Ethernet 10BASE-T1S port supports both CSMA/CD and PLCA modes and allows for point-to-point and multi-drop network topologies. The port configuration, such as mode, BEACON transmission (PLCA coordinator), Node ID / Node count, and bus termination, can be easily set by on-board DIP switches. 10BASE-T1S test modes can also be generated.
The 10BASE-T1S USB Interface is an ideal tool for connecting a 10BASE-T1S ECU or a multi-drop network to a computer or laptop without an internal network card, such as ultrabooks, mini-PCs etc.
Features:
- 10BASE-T1S to USB network interface card
- 10BASE-T1S test modes generator
- USB – CAN(/FD) interface
- On-board switches for quick and easy configuration
Specification:
- 10BASE-T1S port (IEEE 802.cg)
- Supports CSMA/CD and PLCA modes
- Supports PLCA coordinator and follower
- Point-to-point or multi-drop topology
- End-node termination can be easily enabled
- Test modes can be programmatically generated
- USB 2.0 network interface card
- USB Type-C connector
- USB-powered
- CAN(/FD) channel
- 5x status LED

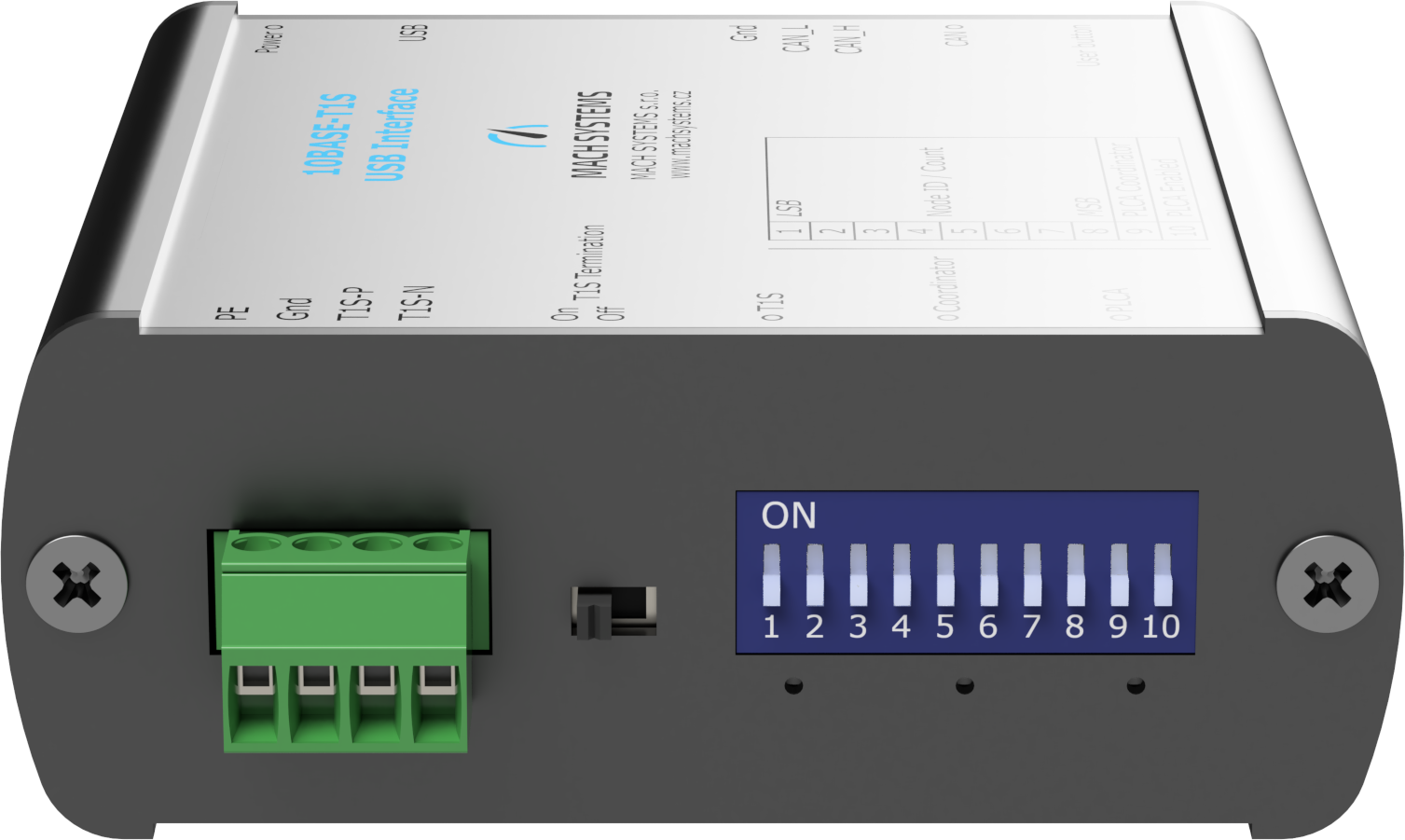

- 11x switch for configuration
Technical Specification:
| Feature |
Description |
| Functions |
10BASE-T1S USB network interface card
10BASE-T1S test mode generator |
| Communication channels |
Automotive Ethernet:
- 10BASE-T1S (IEEE 802.3cg)
- CSMA/CD and PLCA modes supported
- Coordinator and Follower supported
- Node ID/Node Count and BEACON transmission configurable
- End-node termination can be switched on and off by on-board switch
CAN bus: CAN-HS with ISO CAN FD support (ISO 11898-1:2015; CAN2.0A/B)
USB 2.0: Generic 10 Mbit network interface card and USB VCP
|
| LEDs |
4x Dual-colour LED
1x Power LED |
| Buttons and switches |
10x DIP switches
1x Switch (T1S termination)
1x Push button |
| Power |
USB-powered over USB Type-C |
| Connectors |

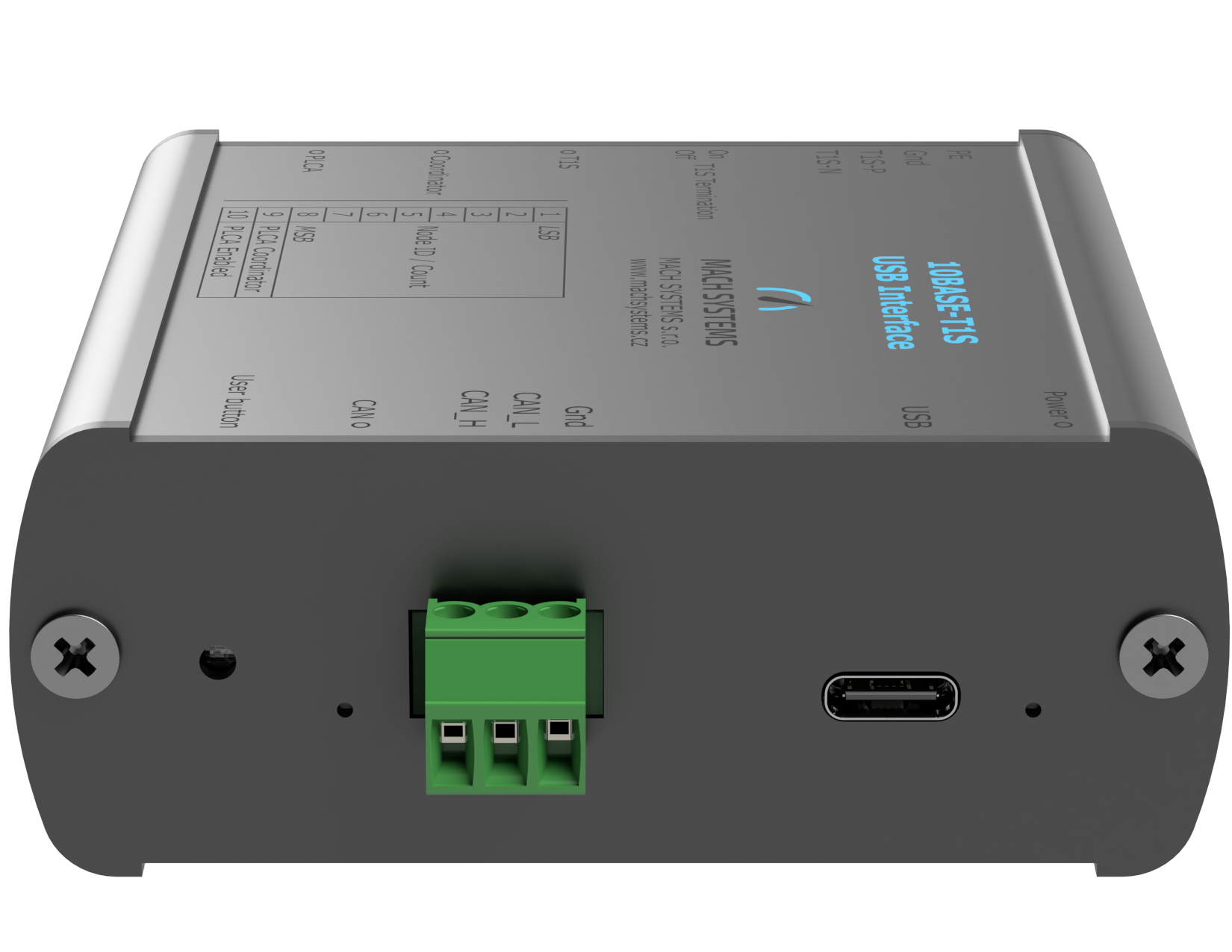

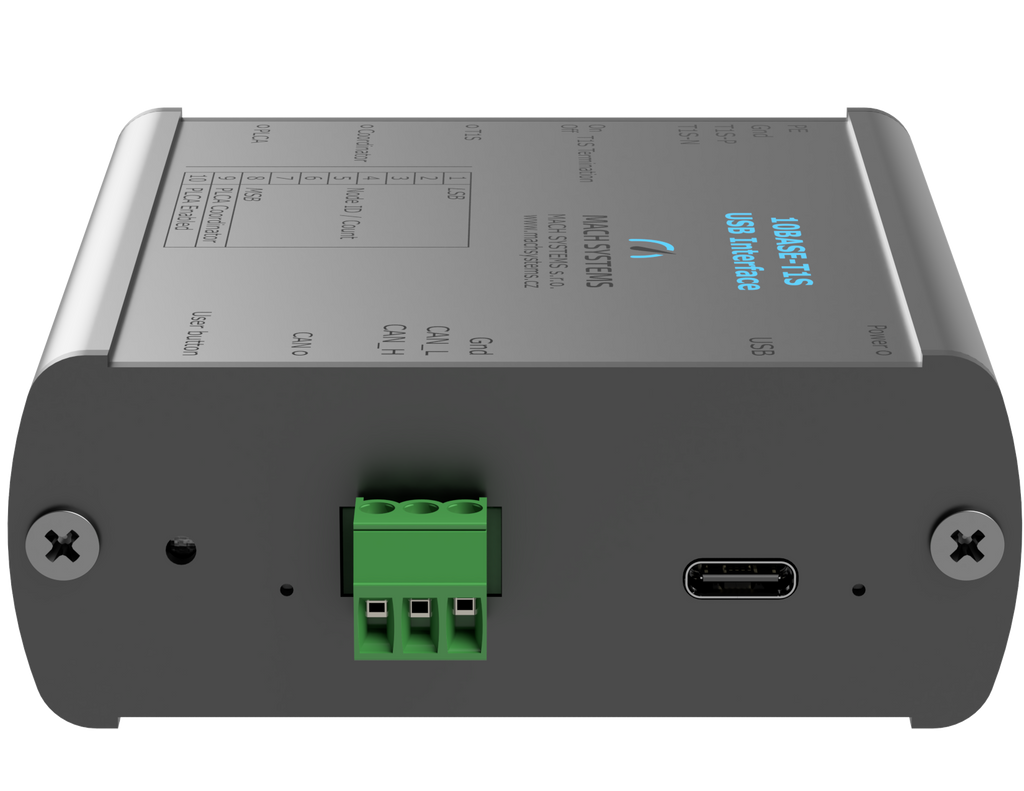

10BASE-T1S: 4-pin removable terminal block
CAN(/FD): 3 pin removable terminal block
USB 2.0: USB Type-C |
| Dimensions |
88 x 82 x 33 mm |
| Operating temperature |
-20 to 70 °C |
| Placement |
Table (adhesive pads included)
DIN-rail mount (bracket sold separately) |
