Description

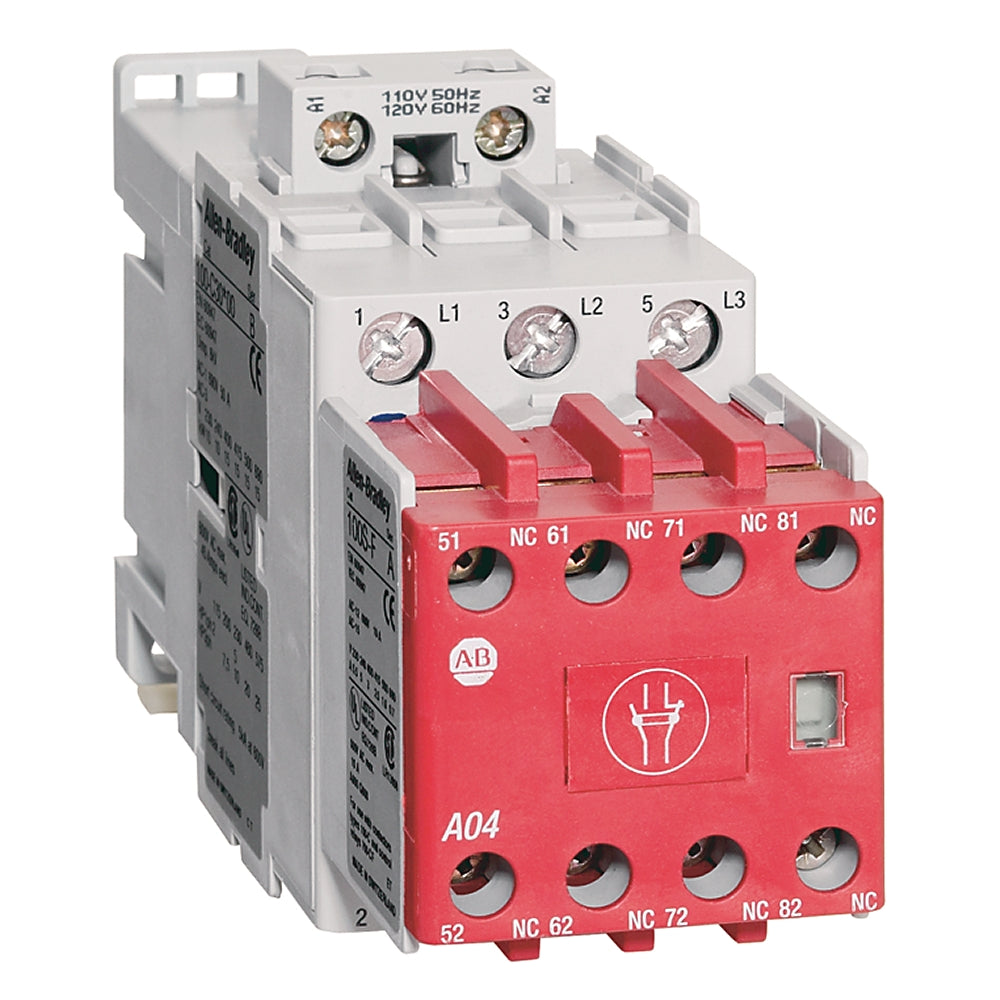

The Allen-Bradley 100S-C09EJ14C is a compact and reliable safety contactor engineered to meet the demands of industrial safety circuits. With a 9 Amp rating and multiple auxiliary contacts, this device ensures secure and efficient switching for a wide range of control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
100S-C09EJ14C
|
| Subcategory |
Safety Relay |
| Amperage |
9 A at 400 VAC-3, 32 A at 400 VAC-1 |
| Coil Voltage |
24 VDC |
| Contact Configuration |
3 NO power poles, 1 NO and 4 NC auxiliary contacts |
| Power Rating |
4 kW |
| Voltage Range |
230-690 VAC (50 Hz), 115-575 VAC (60 Hz) |
| Termination Type |
B-line side coil termination |
| Standards Compliance |
C-TICK, CCC, KC |
| Application |
Industrial Automation, Safety Circuits |
| Weight |
1.1100 lb |
Information About 100S-C09EJ14C
The 100S-C09EJ14C is designed to deliver high performance with a focus on reliability and safety. This model operates at a coil voltage of 24 VDC and supports a voltage range of 230–690 VAC at 50 Hz or 115–575 VAC at 60 Hz. With a main current rating of 9 Amps at 400 VAC-3 and 32 Amps at 400 VAC-1, it’s suitable for various industrial control applications. It features a 1 NO and 4 NC auxiliary contact configuration, supporting safe control logic and feedback. The unit includes 3 normally open (NO) power poles, ensuring reliable switching for motor loads and other high-demand equipment. The device is designed with a B-line side coil termination for straightforward wiring. Certified to international standards including C-TICK, CCC, and KC, it’s recognized for global use in safety-critical industrial systems.
Key Features:
- Current Rating: Supports 9 A at 400 VAC-3 and 32 A at 400 VAC-1, providing flexibility for different load requirements in industrial automation applications.
- Safety Contact Configuration: Features 3 normally open power poles plus 1 NO and 4 NC auxiliary contacts, ensuring safe and reliable switching logic in safety-critical circuits.
- Coil Voltage: Operates on 24 VDC, allowing easy integration with standard industrial control voltages and safety PLC outputs.
- High Voltage Support: Handles voltage ranges of 230-690 VAC at 50 Hz and 115-575 VAC at 60 Hz, ensuring compatibility with global power standards.
- Power Rating: Rated for 4 kW, supporting medium-duty motor control and other industrial applications.
- Side Coil Termination: B-line side coil termination simplifies installation, reduces wiring errors, and supports easy integration into control panels.
- Standards Compliance: Certified with C-TICK, CCC, and KC, meeting global requirements for safety and performance.
The 100S-C09EJ14C delivers dependable switching performance, combining safety, versatility, and international compliance to meet the needs of modern industrial automation systems.
