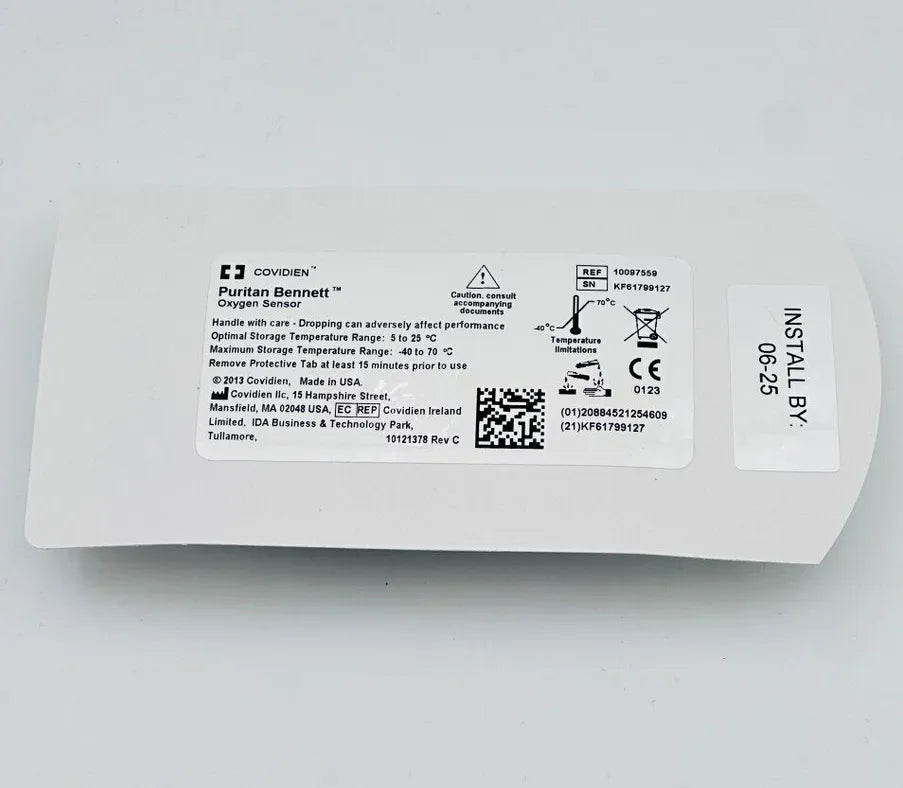

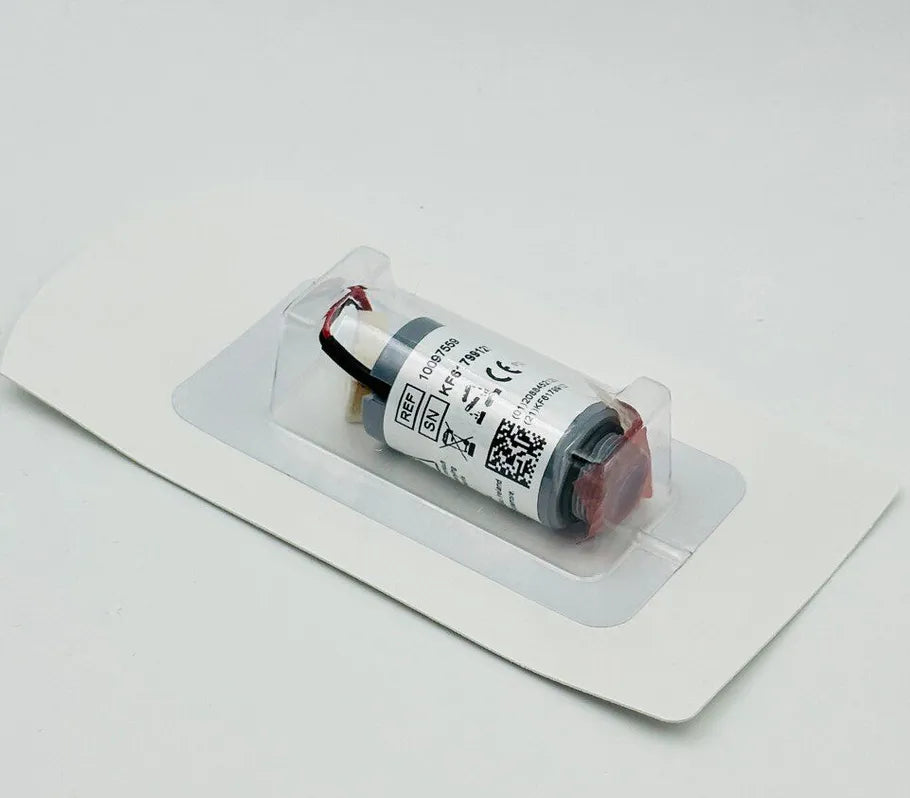

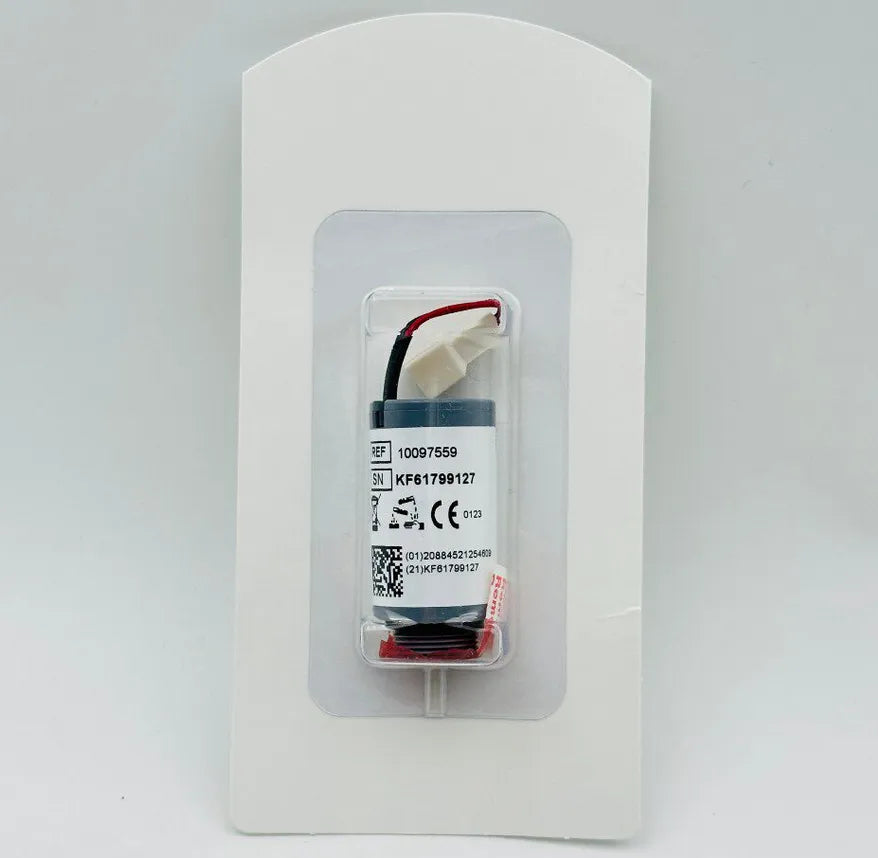

The 10097559 Oxygen Sensor is designed for use with Covidien / Medtronic PB760, PB840, and PB980 ventilators. It provides reliable and accurate oxygen concentration monitoring to ensure optimal ventilator performance in clinical environments.

Specifications

• Part Number: 10097559
• Measurement Range: 0–100% O₂
• Accuracy: ±2% of full scale
• Output Signal: 10.0–14.0 mV in ambient air
• Response Time: < 15 seconds to reach 90% of final value
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Pressure Range: 0.5–2.0 bar (50–200 kPa)
• Relative Humidity: 0–99% RH (non-condensing)
• Warranty: 6 months
• Expected Service Life: Approx. 1,000,000% O₂ hours
• Connector Type: 3-pin Molex connector

This oxygen sensor is manufactured to meet strict performance standards and provides stable, accurate oxygen measurement for compatible PB series ventilators.
