Description

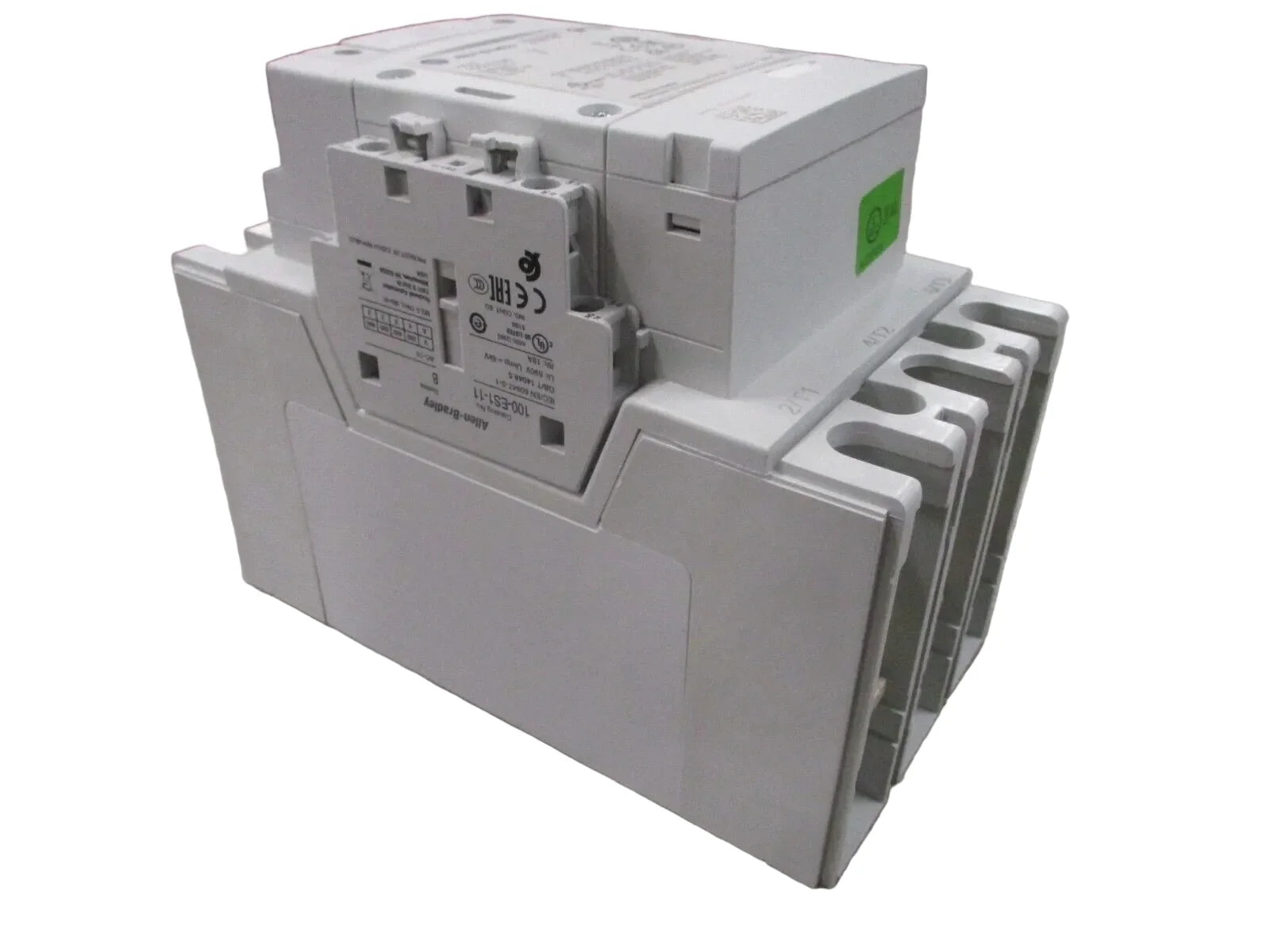

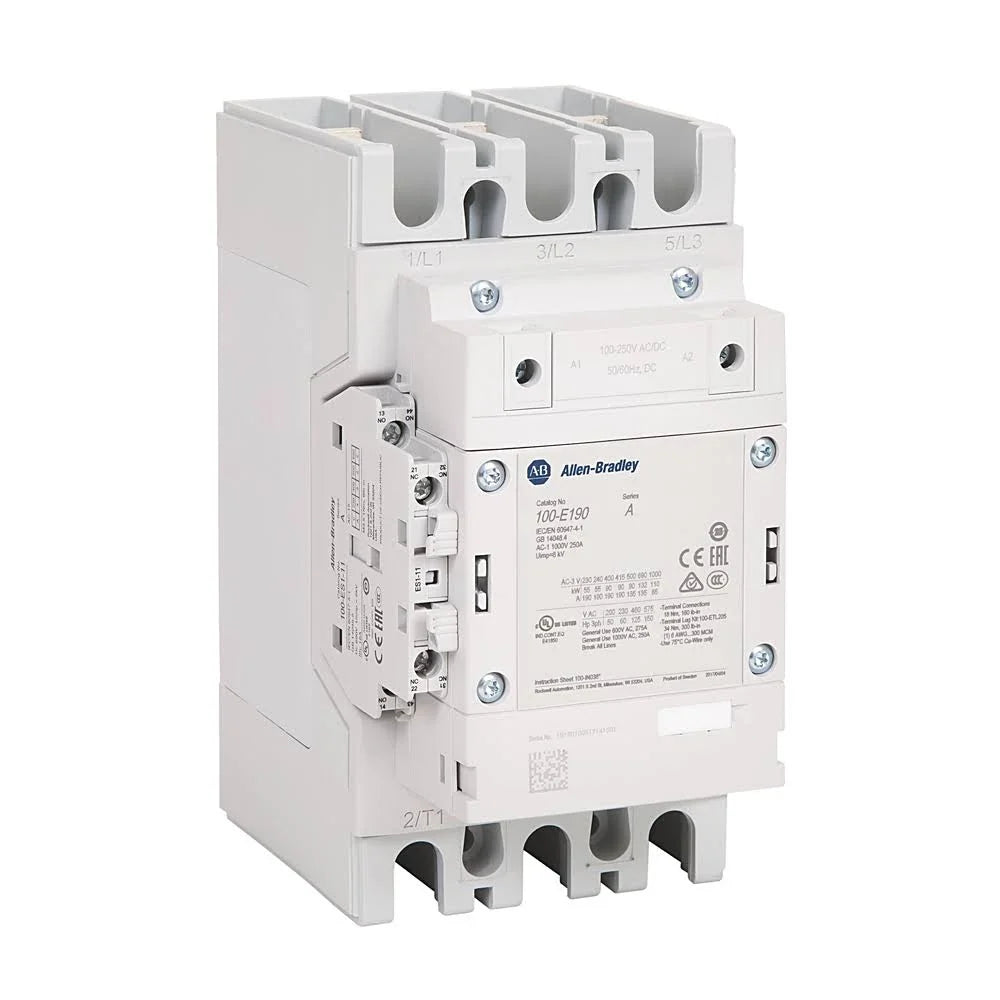

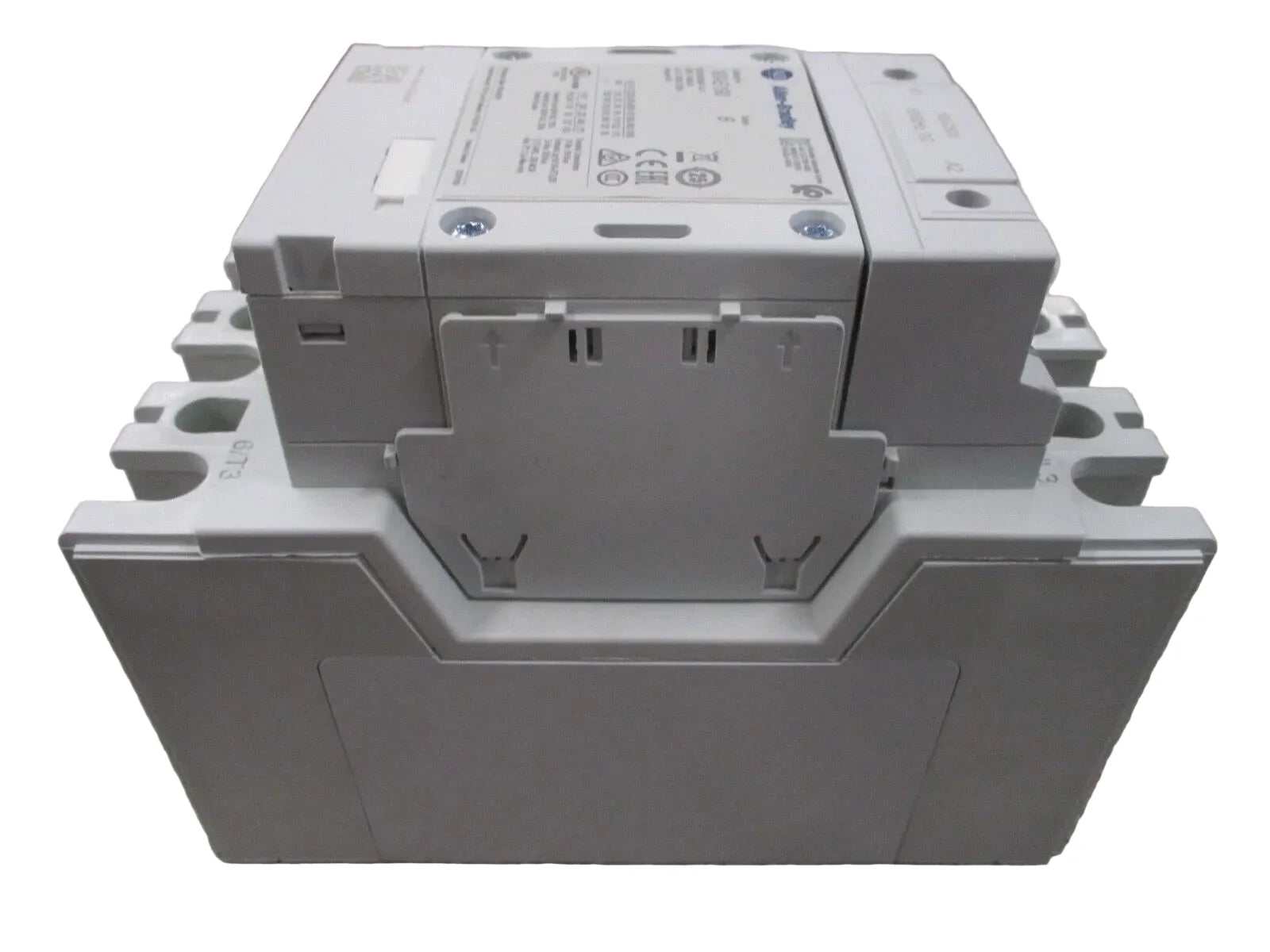

The Allen-Bradley 100-E190KD11 is a high-capacity IEC contactor rated for 190 amps, engineered for reliable operation in industrial motor control systems. It features a wide-range coil voltage of 100–250V AC/DC and includes both Normally Open (NO) and Normally Closed (NC) auxiliary contacts. This large-frame contactor is designed for AC3 duty applications and provides direct bar-type connections for efficient power distribution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
100-E190KD11
|
| Subcategory |
Contactor |
| Series |
|
| Current Rating |
190 Amp |
| Power Rating |
90 kW at 400 V |
| Coil Voltage |
100–250V AC/DC |
| Number of Poles |
3 Pole |
| Auxiliary Contacts |
1 Normally Open, 1 Normally Closed |
| Connection Type |
Bar Terminal Connections |
| Voltage Rating |
400 Volt |
| Number of Phases |
3 Phase |
| Standards |
IEC Compliant |
| Weight |
7.4700 lb |
Information About 100-E190KD11
The 100-E190KD11 is part of Allen-Bradley’s MSC-E series of large-frame IEC contactors, offering robust switching performance for motors and resistive loads. Designed to handle up to 190 A of operational current, it supports 3-phase power systems and is capable of switching motors with ratings up to 90 kW at 400 V. This makes it well-suited for high-power industrial equipment, including pumps, compressors, conveyors, and HVAC systems.
Key Features:
- 190 Amp Operational Capacity: Suitable for controlling high-powered motors and heavy-duty equipment, especially in manufacturing and energy sectors.
- Universal Coil Voltage (100–250V AC/DC): Eliminates the need to stock multiple coil types by supporting a wide voltage range for AC or DC operation.
- 3-Phase, 3-Pole Configuration: Optimized for standard three-phase load switching, ensuring balanced and efficient current distribution.
- Auxiliary Contacts Included (1 NO / 1 NC): Provides built-in feedback and interlocking functionality without additional components.

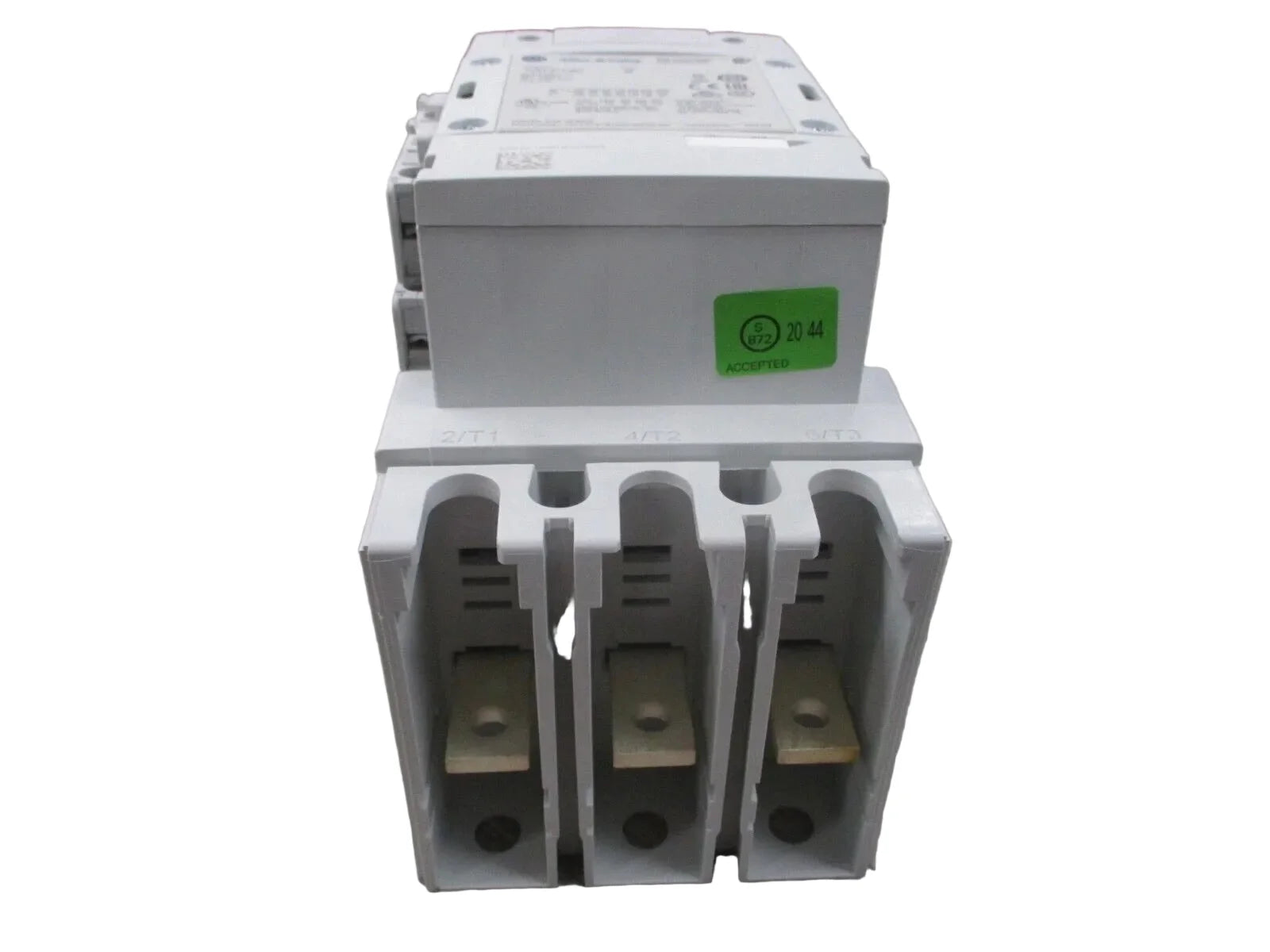

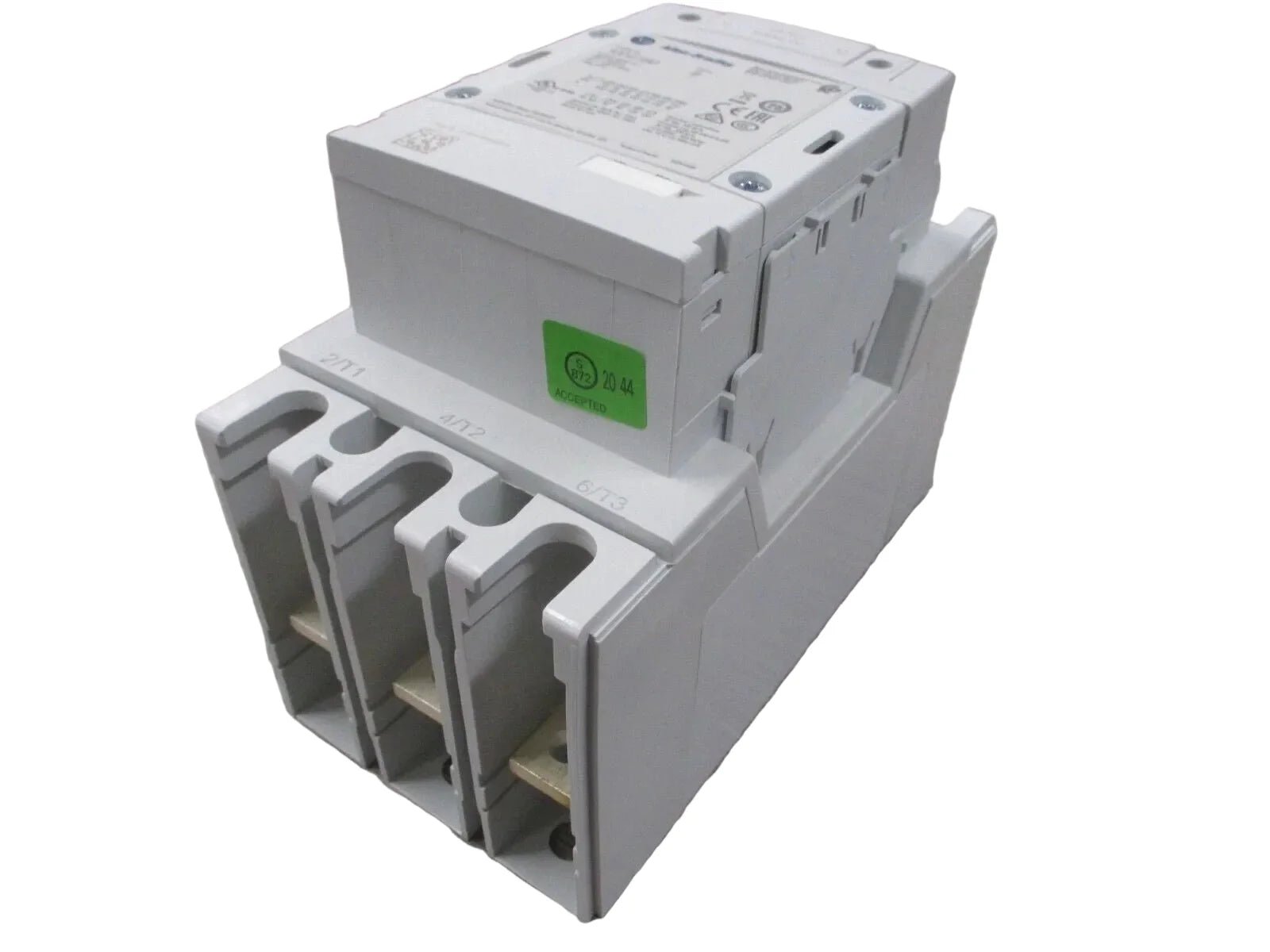

- Bar-Type Power Terminals: Designed for direct bar connections, simplifying high-current wiring in industrial control panels.
- 90 kW Power Rating at 400 V: Delivers high-power motor switching capabilities, meeting the demands of process control and automation systems.
- Durable IEC Construction: Built for long-term reliability in high-cycle and high-load environments under AC3 utilization category.
The 100-E190KD11 delivers robust and efficient motor switching performance with global compatibility and scalable integration for large industrial control systems.
