Description

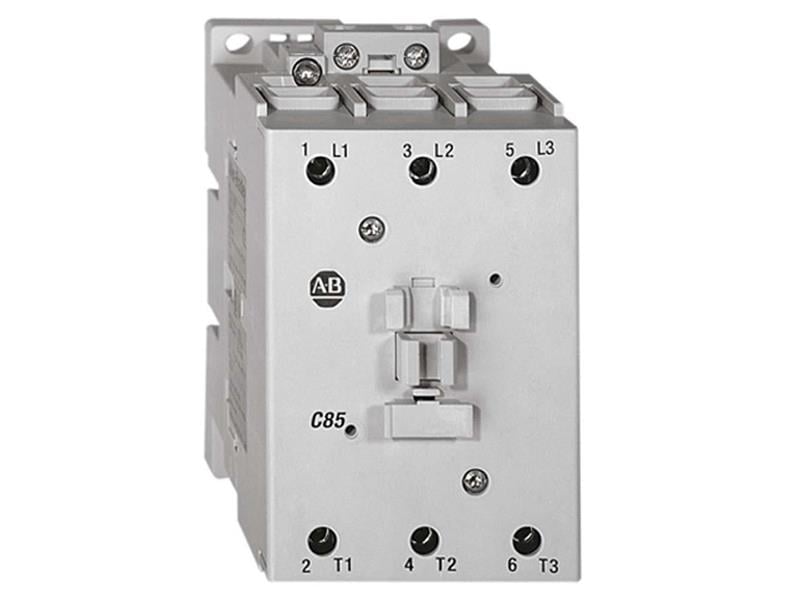

The 100-C85DJ10 is an Allen-Bradley IEC contactor rated for 85 Amps, featuring a 24V DC coil with an integrated diode. Designed with 3 normally open poles, it provides reliable motor load switching and control in industrial applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
100-C85DJ10
|
| Subcatecory |
|
| Current Rating |
85 Amps |
| Coil Voltage |
24V DC (with integrated diode)
|
| Main Poles |
3 Normally Open (NO) |
Auxiliary Contact
|
1 Normally Open (NO) |
Coil Termination
|
Line-side
|
| Terminal Type |
Screw Terminals
|
| Standards Compliance |
IEC
|
| Weight |
4.01 lbs
|
Information About 100-C85DJ10
The Allen-Bradley 100-C85DJ10 is a heavy-duty IEC contactor built to deliver robust and efficient switching for motor loads and industrial power circuits. It features a 24V DC coil integrated with a protective diode to suppress voltage spikes and enhance coil longevity, especially in environments requiring frequent switching. Rated for 85 Amps, the contactor is equipped with 3 normally open (NO) poles, ensuring reliable contact closure for three-phase motor operations. It includes an additional normally open auxiliary contact for circuit signaling or interlocking applications.
Key Features:
-
High Current Capacity: Rated for 85A to support a wide range of motor loads and industrial devices.
-
24V DC Coil with Diode: Reduces coil arcing and extends service life, ideal for DC control systems.
-
3 Normally Open Poles: Standard three-phase load switching configuration.
-
Auxiliary Contact Included: One additional NO contact for control circuit applications.
-
Robust Termination: Line-side coil wiring and screw terminals for secure and easy installation.
The 100-C85DJ10 delivers the reliability and performance required for demanding industrial control applications with DC-powered switching needs.
