Description

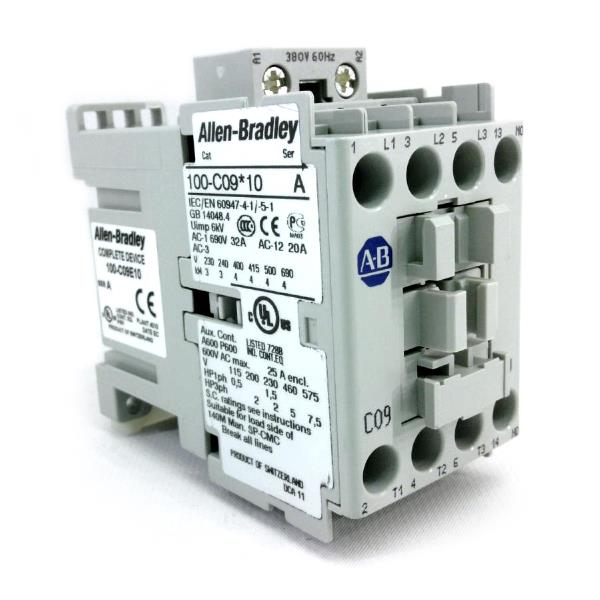

The Allen-Bradley 100-C09E10 is a compact 9 A IEC contactor designed for motor control and power switching applications. It features a 3-pole configuration, 1 normally open auxiliary contact, and a 380 VAC coil (60 Hz), making it ideal for controlling small motors and loads in industrial systems.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
100-C09E10
|
| Subcatecory |
|
| Series |
Bulletin 100-C |
| Rated Current |
9 A |
| Poles |
3-Pole |
| Auxiliary Contacts |
1 NO |
| Coil Voltage |
380 VAC 60 Hz |
| Power Ratings |
3 kW 230 V, 4 kW 400–690 V |
| Voltage Rating |
Up to 600 V
|
| Mounting |
35 mm DIN Rail |
| Terminal Type |
Screw-Type |
| Operating Temperature |
-25°C to 60°C |
| Weight |
0.8800 lb |
Information About 100-C09E10
The 100-C09E10 is part of Allen-Bradley’s compact Bulletin 100-C contactor series, designed to provide efficient and reliable switching for motor loads up to 9 amps. The contactor includes three power poles and one normally open auxiliary contact, making it suitable for three-phase motor control applications. The device operates with a 380 VAC coil at 60 Hz and supports motor ratings up to 4 kW at voltages from 400 V to 690 V, depending on application requirements.
Key Features:
-
9 A Rated Current: Ideal for small motor and general-purpose switching
-
3-Pole Configuration: Designed for three-phase systems
-
380 VAC Coil (60 Hz): Compatible with standard industrial control voltage
-
1 NO Auxiliary Contact: For auxiliary control or signaling
-
DIN Rail Mountable: Quick and standardized panel installation
The 100-C09E10 offers dependable and space-efficient contactor performance for compact industrial control setups.
