Description

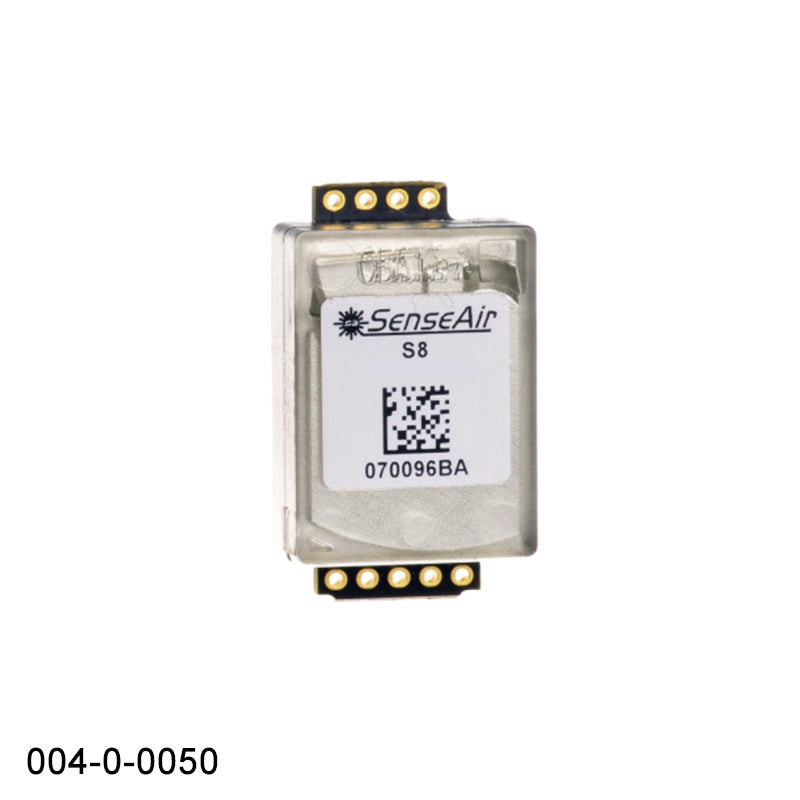

The Sensesair S8 2% CO2 Sensor (004-0-0050, was SE-0031) is designed to be used in control and alarm applications. This sensor can further be integrated into a wide range of applications including CO2 leak detection.
Features
- Miniature size
- Easy integration
- Individually calibrated
- Maintenance-free
- Long term stability
- Low power consumption
Models
- Senseair S8 2% CO2 Sensor (004-0-0050) - for high volume production with focus on control and alarm applications
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: diffusion
- Measurement Range: 0.04-2% vol
- CO2 Accuracy: ±200ppm ±3% of reading 1, 2
- Communication Options: UART (Modbus)
- Operating Temperature: 0 to 50°C
- Response Time: 2 minutes by 90%
- Dimensions: 8.5 x 33.5 x 20 mm
- Sensor Life Expectancy: > 15 years
Electrical / Mechanical
- Power Supply:4.5 V to 5.25VDC
- Max Current: 300 mA < 18mA average.
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Accessories
Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
