[shortdesc] Firewall, desktop DSL RJ11 (VDSL2/ADSL2+), 10/10/7 Gbps IPv4 firewall, 1 Gbps NGFW, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model / SKU |
FortiGate / FG-80F-DSL-BDL-809-36 |
| Bundle / Subscription |
Firewall appliance plus 3 Year FortiCare Premium and FortiGuard Enterprise Protection (BDL-809-36) |
| Form Factor |
Desktop / Wall Mount (Optional) |
| Integrated Modem |
DSL (VDSL2 / ADSL2 / ADSL2+ / G.DMT / T1.413 / G.Lite) |
| Firewall Throughput |
10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP) |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
900 Mbps |
| Interfaces |
1x DSL RJ11, 2x GE RJ45/SFP Shared Media, 6x GE RJ45 Ports, 2x GE RJ45 FortiLink Ports (Default) |
| Power Input |
12V DC, 5A |
| Dimensions (H x W x L) |
60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches) |
| Weight |
1.39 kg (3.07 lbs) |
| Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
1.4 Gbps |
| System Performance and Capacity |
| Firewall Latency (64 byte UDP) |
3.23 μs |
| Firewall Throughput (Packets Per Second) |
10.5 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
45,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2,500 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
700 |
| SSL Inspection Concurrent Sessions |
100,000 |
| Application Control Throughput (HTTP 64K) |
1.8 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel) |
96 / 48 |
| Maximum Number of FortiTokens |
500 |
| Hardware & Interfaces |
| DSL RJ11 Port |
1 |
| GE RJ45/SFP Shared Media Pairs |
2 |
| GE RJ45 Internal Ports |
6 |
| GE RJ45 FortiLink Ports (Default) |
2 |
| USB Ports |
1 |
| Console Port (RJ45) |
1 |
| Bluetooth Low Energy (BLE) |
— |
| DSL Modem Specifications |
| Supported Modes |
VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite |
| Supported Types |
Annex A, B, I, J, M & L |
| Environment & Power |
| Power Required |
Powered by up to two external DC power adapters (one adapter included), 100-240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) |
28.0 W / 31.6 W |
| Heat Dissipation |
108 BTU/h |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
24.14 dBA |
| Operating Altitude |
Up to 7400 ft (2250 m) |
[/specifications]
[accesories]
| Included Accessories |
External DC Power Adapter (1 adapter included) |
| Optional Accessories |
- AC Power Adaptor, pack of 5 (SP-FWF80F-PDC-5) (Power cable SP-FGPCOR-XX sold separately)
- Rack Mount Tray (SP-RACKTRAY-02)
- Wall Mount Kit, pack of 20 (SP-FG60F-MOUNT-20)
- 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC)
- 1 GE SFP SX Transceiver Module (FN-TRAN-SX)
- 1 GE SFP LX Transceiver Module (FN-TRAN-LX)
- 1GE SFP Transceiver, 90km Range, -40°/85°C Operation (FR-TRAN-ZX)
|
[/accesories]

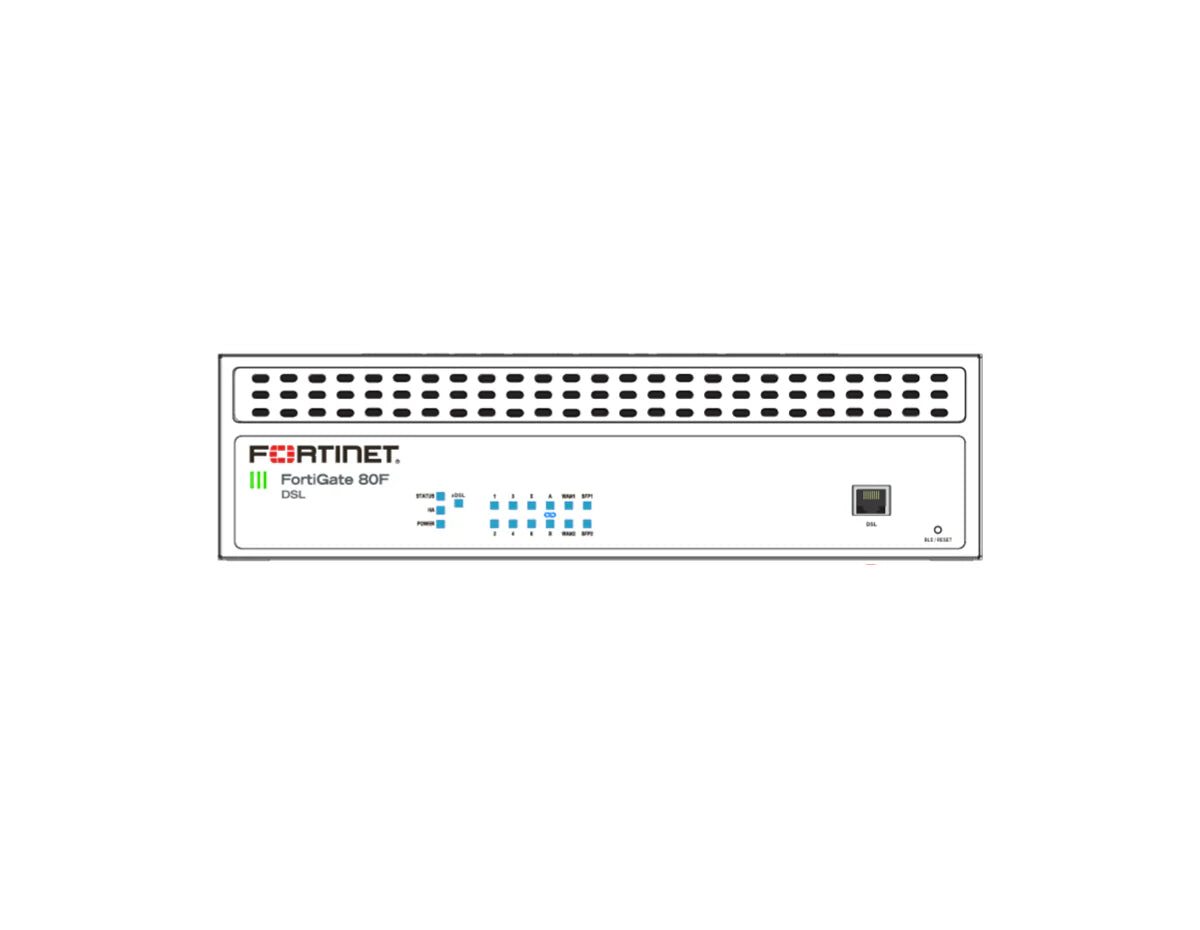

The FortiGate 80F-DSL-BDL-809-36 integrates firewalling, SD-WAN, and security in one appliance for distributed enterprise sites, featuring an embedded DSL module with a dedicated RJ11 port supporting VDSL2, ADSL2, ADSL2+, and legacy DSL standards.
This bundle includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps IPv4 firewall throughput (1518 / 512 / 64 byte UDP) and up to 1.4 Gbps IPS throughput, supporting secure connectivity and SD-WAN deployment at branch locations.
Integrated DSL Connectivity with Converged Security
Key Benefits
-
Integrated DSL Connectivity: 1x DSL RJ11 port supports VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, and G.Lite; supported types include Annex A, B, I, J, M & L.
-
Bundle + Coverage Included: Includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection (BDL-809-36).
-
ASIC-Accelerated Architecture: Built on the secure SD-WAN ASIC SP4 for accelerated networking and security functions.
-
Converged Networking and Security: FortiOS converges networking and security in a single operating system for unified protection and operations.
-
Secure SD-WAN Capabilities: Integrated SD-WAN with accelerated application identification and steering for efficient WAN edge operation.
-

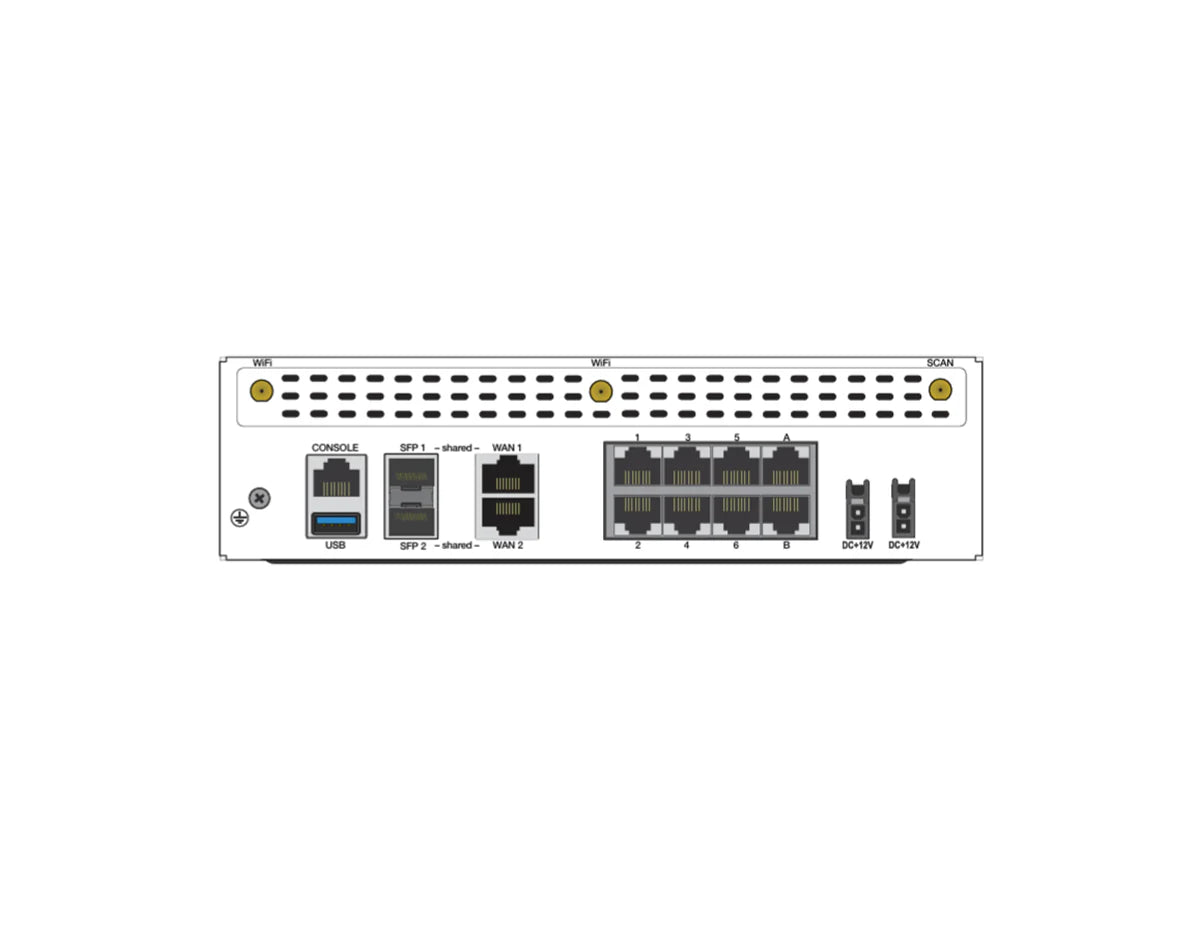

Flexible Interfaces: 2x GE RJ45/SFP shared media ports, 6x GE RJ45 ports, and 2x GE RJ45 FortiLink ports (default), plus 1x USB and 1x RJ45 console.
-
Centralized Management Options: Supports centralized management and visibility using FortiManager and FortiGate Cloud.
Ideal Use Cases
-
Perimeter Protection: Inspect and control inbound and outbound traffic based on defined security policies.
-
Secure SD-WAN WAN Edge: Consolidate SD-WAN and firewall functions with unified management from a single FortiOS operating system.
-
Secure Branch Deployments: Extend protection across WAN, LAN, and branch connectivity with support for FortiSwitch and FortiAP integration.
Technical Specifications Summary
-
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
-
IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
-
NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
-
Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
-
IPsec VPN Throughput (512 byte): 6.5 Gbps
-
SSL-VPN Throughput: 950 Mbps
-
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
-
SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps; SSL Inspection CPS: 700; SSL Inspection Concurrent Sessions: 100,000
-
Concurrent Sessions (TCP): 1.5 Million; New Sessions/Second (TCP): 45,000
-
Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 ports, 2x GE RJ45 FortiLink ports (default), 1x USB, 1x RJ45 console
-
Power & Physical: 12V DC, 5A; 28.0 W average / 31.6 W maximum; 60 x 216 x 178 mm; 1.39 kg
-
Operating Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity; 24.14 dBA noise level
Upgrade Your Network Security
Simplify branch connectivity with the FortiGate 80F-DSL-BDL-809-36 Firewall, combining integrated DSL access with SD-WAN capabilities and included 3-year Enterprise Protection bundle coverage.
