Descripción

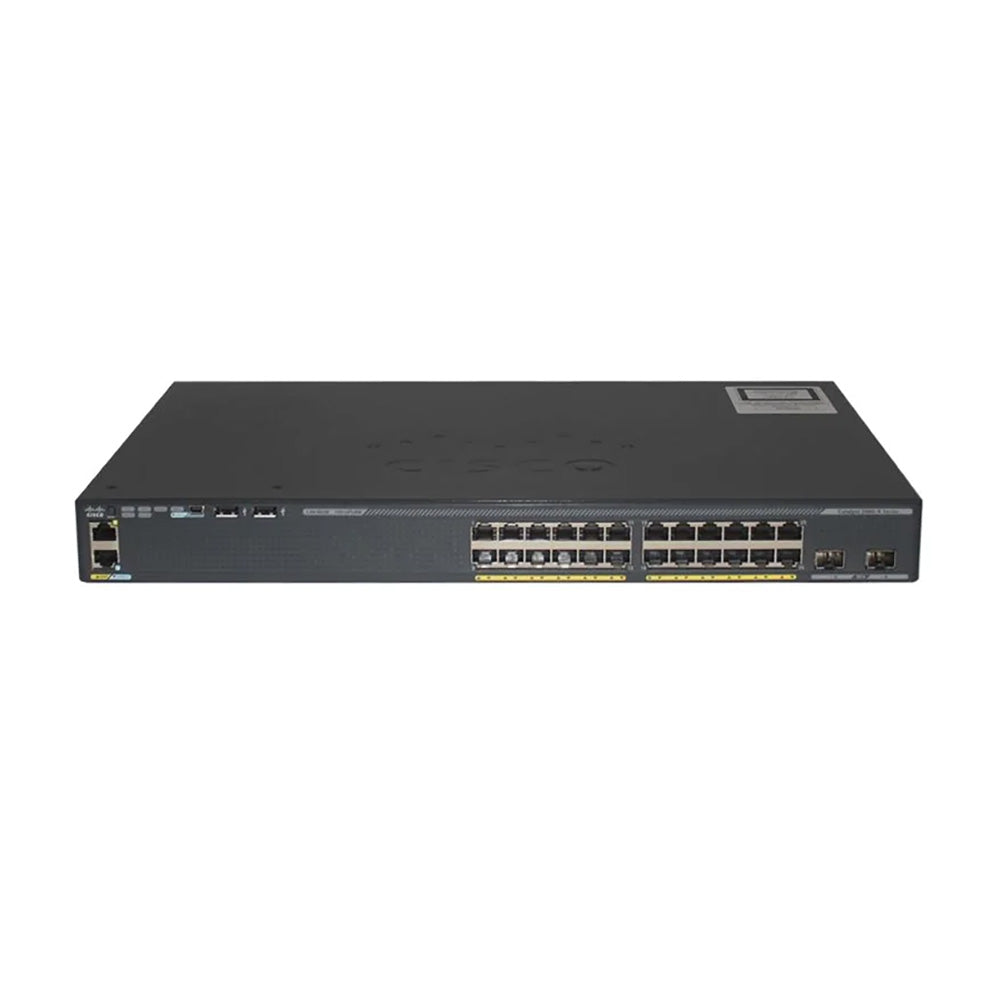

Cisco Catalyst 2960X 24TD-L Stackable Ethernet Switch
The Cisco Catalyst 2960X-24TD-L LAN Base stackable Gigabit Ethernet switch delivers enterprise-class access for U.S. campus and branch environments—from Chicago trading desks to Silicon Valley tech hubs.
This 1 RU rack-mountable switch offers 24 auto-sensing 10/100/1000 RJ-45 ports and two 10 Gbps SFP+ uplinks, providing 216 Gbps of full-duplex switching capacity and a wire-speed forwarding rate of 95.2 Mpps.
FlexStack-Plus lets you stack up to eight units with 80 Gbps of dedicated stack bandwidth, simplifying network expansion across multi-floor American offices.
Powered by the Cisco IOS® LAN Base feature set, it integrates seamlessly with Cisco DNA Center for centralized management, while delivering industry-leading security and energy-saving features
Overview
Highlights
-
Ports & Uplinks
24 × 10/100/1000 RJ-45 + 2 × 10 Gbps SFP+ for high-density copper access and fiber backhaul. -
FlexStack-Plus Stacking
Stack up to eight switches with 80 Gbps of stacking bandwidth—ideal for U.S. branch offices spanning multiple floors. -
High Performance
216 Gbps switching capacity with a wire-speed forwarding rate of 95.2 Mpps, ensuring smooth traffic flow for mission-critical applications. -
Advanced Layer 2 Features
Comprehensive support for IEEE 802.1Q VLANs, STP/RSTP/MSTP, LACP and PAgP link aggregation, IGMP/MLD snooping, DHCP snooping, Dynamic ARP Inspection, storm control, ACL-based traffic policing, and more. -
Enterprise-Grade Security
MAC-based VLANs, 802.1X authentication, Port Security, BPDU Guard, Private VLAN Edge, IP Source Guard, Dynamic ARP Inspection, TACACS+/RADIUS, and U.S. export-compliant SSH/SNMPv3. -
Energy Efficiency & Quiet Operation
IEEE 802.3az Energy-Efficient Ethernet saves up to 8 W on 24-port models, while Cisco EnergyWise policies enable granular power control. Variable-speed fans produce just 42 dB(A) in typical U.S. office ambient, keeping noise to a minimum. -
Flexible Management
Manage via CLI, Web UI (Cisco Configuration Professional), Bluetooth-over-the-air, SNMP v1/v2c/v3, RMON, RJ-45/USB console, Cisco Network Assistant, or Cisco DNA Center for on-premises or cloud-based orchestration.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C2960X-STACK | FlexStack-Plus Module | Hot-swappable stacking module for up to 8 switches (80 Gbps) |
| CAB-STK-E-0.5M | Stacking Cable | 0.5 m FlexStack-Plus stacking cable |
| GLC-LH-SMD | SFP Transceiver | 1000BASE-LX/LH single-mode fiber, up to 10 km, DOM |
| GLC-SX-MMD | SFP Transceiver | 1000BASE-SX multimode fiber, up to 550 m, DOM |
| CAB-CONSOLE-RJ45 | Console Cable | 6 ft RJ-45 to DB9F serial console cable |
| CAB-CONSOLE-USB | Console Cable | 6 ft USB Type-A to Mini-B console cable |
| PWR-RPS2300 | Redundant Power Supply Option | Cisco Redundant Power System 2300 for AC failover |
| RCKMNT-REC-2KX | Rack-Mount Kit | 1 RU recessed rack-mount kit for 19″ racks |
Comparison with Similar Models
| Feature | 2960X-24TD-L | 2960X-24TS-L | 2960X-24PD-L |
|---|---|---|---|
| Ports & Uplinks | 24 × 1 GbE + 2 × 10 GbE SFP+ | 24 × 1 GbE + 4 × 1 GbE SFP | 24 × 1 GbE PoE+ + 2 × 10 GbE SFP+ |
| PoE Capability | None | None | 370 W total PoE+ |
| Switching Capacity | 216 Gbps full-duplex | 216 Gbps full-duplex | 216 Gbps full-duplex |
| Forwarding Rate | 95.2 Mpps | 71.4 Mpps | 95.2 Mpps |
| Fan & Noise | Variable-speed fans; 42 dB(A) typical / 46 dB(A) max | Variable-speed fans; 42 dB(A) / 46 dB(A) | Variable-speed fans; 39 dB(A) / 43 dB(A) |
| Power Consumption | ~0.034 KVA (~34 W) | ~0.034 KVA (~34 W) | ~0.05 KVA (~50 W) + PoE |
| Dimensions (W×D×H) | 17.5″ × 11.0″ × 1.75″ | 17.5″ × 11.0″ × 1.75″ | 17.5″ × 11.0″ × 1.75″ |
| Ideal Use Case | High-density copper access with 10 GbE uplinks in noise-sensitive U.S. branches | Copper access with fiber uplinks for campus distribution | PoE+ endpoints (VoIP, Wi-Fi APs) in U.S. offices |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | WS-C2960X-24TD-L |
| Enclosure | 1 RU rack-mountable |
| Feature Set | LAN Base |
| Ports | 24 × 10/100/1000 RJ-45; 2 × 10 Gbps SFP+ |
| Max Stacking | 8 units; 80 Gbps stack bandwidth |
| Switching Capacity | 216 Gbps full-duplex |
| Forwarding Rate | 95.2 Mpps (64-byte L3 packets) |
| MAC Address Table | 16 K entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| DRAM / Flash | 512 MB DRAM; 128 MB Flash |
| CPU | APM86392 dual-core 600 MHz |
| Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, RMON, Telnet, SSH, Cisco Network Assistant, Cisco DNA Center, Bluetooth, RJ-45/USB console |
| Power Supply | Internal 100–240 VAC, 50–60 Hz; typical 0.034 KVA (≈34 W) |
| Acoustic Noise | 42 dB(A) typical; 46 dB(A) max |
| Operating Temp. / Humidity | 23 °F to 113 °F (–5 °C to 45 °C); 10–95% non-condensing |
| MTBF | 569,520 hours |
| Dimensions (W×D×H) | 17.5″ × 11.0″ × 1.75″ |
| Weight | 8.9 lb (4.0 kg) |
